GV LIBASE - GNSS RTK + Controller + LiSurvey Software

GV LIBASE - GNSS RTK + Controller + LiSurvey Software

Name: GV LIBASE - GNSS RTK + Controller + LiSurvey Software
Brand: GreenValley International
SKU: GV-LIBASE-GNSS-RTK
Price: 4010.0 CAD
Availability: OutOfStock

$4,010.00 CAD

On demand

0 notice

Les informations sur les combos sont dans la section ''inclus'' plus bas

Ultra-fast, lightweight, all-in-one GNSS RTK solution with Android controller and integrated LiSurvey software for high-precision surveys.

PAY YOUR PURCHASE IN SEVERAL INSTALLMENTS WITH

Option available at checkout.
Terms and operation

Shipped within 24 to 48 hours. Free delivery on all orders over $149.00

Rental options

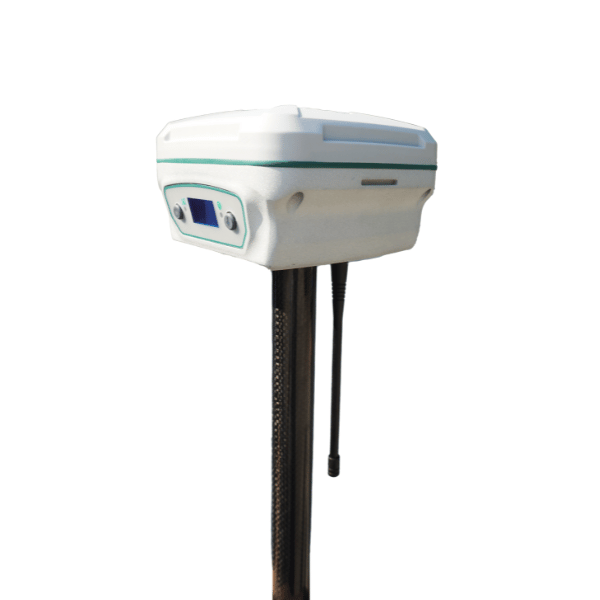

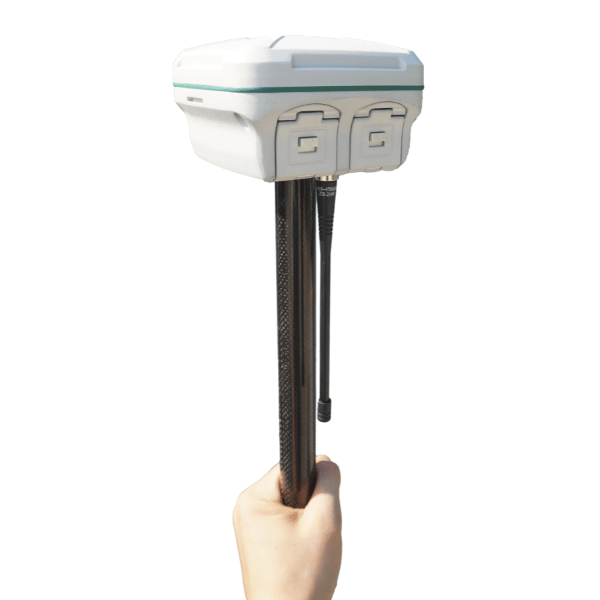

The LiBase is a next-generation GNSS RTK solution, combining an ultra-compact receiver, a rugged Android controller, and the professional software LiSurvey. Lightweight (834 g with 2 batteries) and compact (12.3 cm in diameter), it offers total mobility without compromising on accuracy.

With its GNSS module supporting 5 constellations/16 bands and 1590 channels, the LiBase provides ultra-fast RTK initialization and reliable positioning even in challenging environments. It integrates inertial tilt compensation up to 60° without loss of centimeter-level accuracy.

The included controller, under Android 8.1, features a 5-inch high-visibility screen, 4G, dual-band WiFi, Bluetooth 4.0, and extended battery life thanks to a 7000 mAh battery.

Combined with LiSurvey, it enables smooth work: intelligent measurement, project management, CAD/SHP file import, cloud synchronization, and remote assistance.

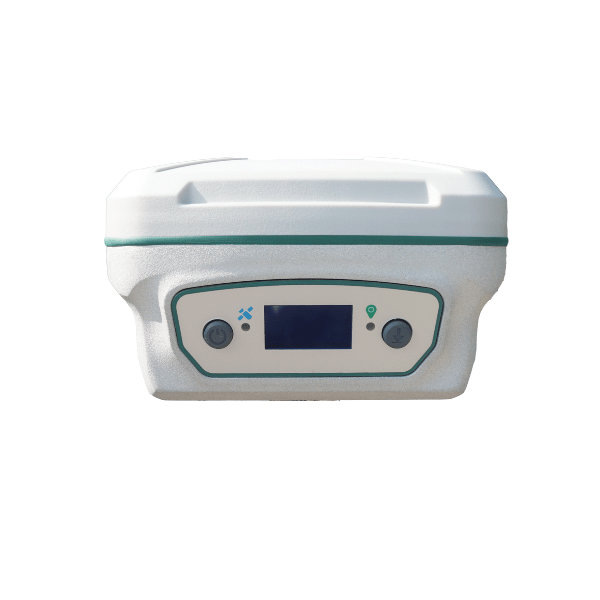

LiBase GNSS Receiver

Characteristic	Detail
Dimensions	12.3 × 12.3 × 7.0 cm
Weight	834 g (with 2 batteries)
Case material	Aluminum-magnesium alloy
Protection	IP67, shock resistance (2 m drop)
Batteries	2 batteries included, up to 12h battery life
Consumption	<2.85W
Internal storage	8 Go
Communication ports	1 RS232 port, 1 USB port (7-pin LEMO), Bluetooth
GNSS price on charge	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Channels	1590 channels
Static accuracy	Horizontal: ± (2.5 mm + 0.5 ppm × D) Vertical: ± (5 mm + 0.5 ppm × D)
RTK Accuracy	Horizontal: ± (8 mm + 1 ppm × D) Vertical: ± (15 mm + 1 ppm × D)
Cold start time	<30 seconds
Signal recovery time	<1 second
Precision with tilt compensation	<2.5 cm up to 60°
RTK network support	VRS, FKP, MAC, NTRIP
Support radio	UHF transmission and reception, 410–470 MHz

Included Android controller

Characteristic	Detail
Operating system	Android 8.1
Processor	8 cores, 2.0 GHz
RAM / Internal Storage	4 GB + 64 GB (expandable via SD card)
Screen	5 inches (720×1280) sunlight-readable
Connectivities	Bluetooth, dual-band WiFi, 4G LTE
Battery	7000 mAh, fast charging (<4h)
Protection index	IP67
Interface	Universal Type-C

LiSurvey Software

Functionality	Detail
Main features	Topographic surveys, staking out, data collection
Supported formats	Import CAD, SHP, export various standard formats
Synchronisation	Real-time cloud synchronization
Project monitoring	Visualization of positions and trajectories
Support	Integrated remote assistance
