The DJI AGRAS T50 takes drone farming operations to new heights. It inherits a powerful dual coaxial rotor propulsion system and a split-type torque-resistant structure for next-level stability when transporting 40 kg spraying or 50 kg spreading loads. The DJI AGRAS T50 takes advantage of a dual atomization spray system, front and rear phased array radars, and a binocular vision system. The DJI AGRAS T50 excels in multiple scenarios, from mapping to spraying and spreading, ensuring stable operations and consistent performance.

Spray System

High Flow, Atomized and Leak-Free Spraying

Heavy Load

Spraying 40 kg

Spreading of 50 kg

High Flow

Spraying 16 L/min

Spreading 108 kg/min

Signal Stability

Offline Operations

O3 transmission over 2 km

Optional DJI relay

Adaptability to all scenarios

Fully automatic and manual operation

Orchard Mode

Variable Rate Application

Multidirectional Obstacle Detection

Multi-directional obstacle avoidance

Terrain tracking up to 50°

Kit of Four Sprinklers (Optional)

Reverse direction spray in flight four sprinkler spray,

flow rate 24 L/min

Field Operations

21 hectares per hour

Orchard Operations

4 hectares per hour

Spreading Operations

1,500 kg of pellets per hour

Magnetic Drive Turbine Pump

Double pump flow rate of up to 24 L/min[3]. This is a 100% increase over the previous generation, to meet the demands of fields, orchards and high temperature environments.

Double Atomization Centrifugal Sprinklers

Droplet size can be adjusted between 50 and 500 μm, depending on the chemicals used.

New solenoid valves

Precise start and stop eliminates leaks

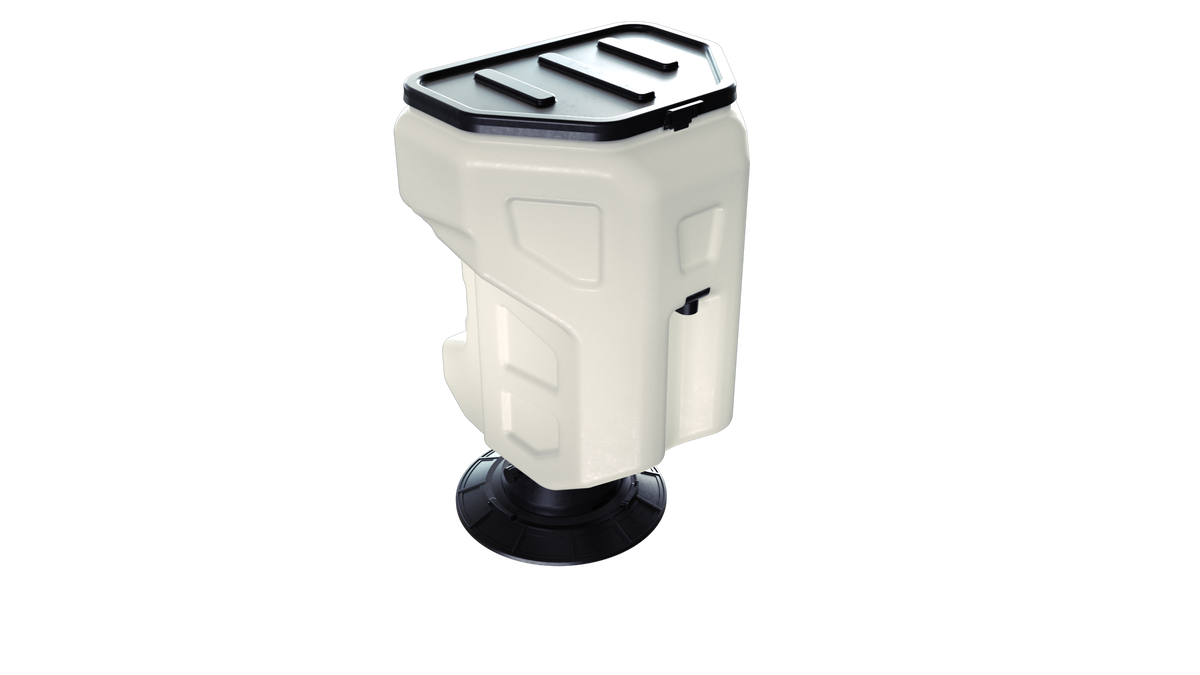

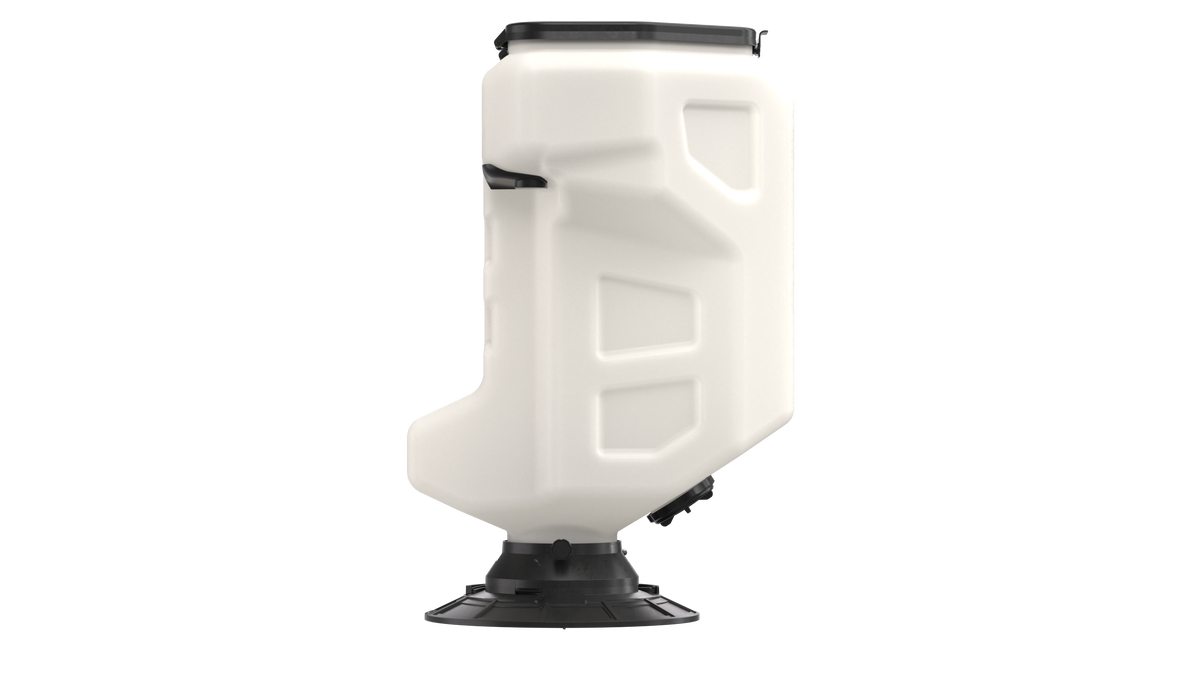

Payload of 50 kg

Maximum capacity of 75 L and an enlarged loading door for quick refills.

Fluid spreading

The spreader torque is doubled and the discharge hatch is enlarged to allow a flow rate of up to 108 kg/min[4].

Uniform spreading

The spiral disc of the DJI AGRAS T50's rotation channel makes spreading more uniform.

Low rate spreading

You can also upgrade to small hopper hatches to improve spreading accuracy with low flow rates.

Real-time weighing

The DJI AGRAS T50 is equipped with a weighing sensor that allows you to monitor the remaining payload in real time.

Quick disassembly and cleaning

The spreader can be quickly disassembled and cleaned for easy maintenance.

Tested for reliability, durability and safety

Spraying and spreading operations are frequent, intense and take place in complex environments. The DJI AGRAS T50 has passed hundreds of reliability tests and its main body is durable to ensure safe operations.

Double your peace of mind with binocular vision and dual radar

The DJI AGRAS T50 is equipped with dual-antenna array active electronically scanned array radars on the front and rear, with twice as many RF channels for increased detection accuracy. Together, they enable multi-directional obstacle detection[6], improving the safety of operations. Two sets of binocular vision sensors enable the DJI AGRAS T50 to accurately detect terrain and describe obstacles in detail, for automatic obstacle avoidance and terrain following on steep slopes.

A single drone for mapping, spraying and spreading

The DJI AGRAS T50 integrates aerial mapping, spraying and spreading into one drone. A high-resolution FPV camera allows real-time images of fields and orchards to be captured. Combined with the DJI RC Plus and RTK service, you can generate high-definition maps that serve as the basis for subsequent automatic flight routes. The DJI AGRAS T50 can take off and perform automatic operations, all with a single click.

Aerial Mapping of Vergers[2]

The DJI AGRAS T50 supports obstacle avoidance and terrain following for orchard mapping on slopes up to 20°. With the DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of fruit trees, it can generate automatic and precise 3D flight routes.

Mapping a 5 hectare orchard in 10 minutes

3D map of the Orchard

Aerial Field Mapping

Area Itinerary

13 hectare field mapped in 10 minutes
Scan the entire field, automatically identify field boundaries and obstacles, and plan more accurate flight routes.

Itinerary of the Limit

13 hectare field boundary mapped in 3 minutes

Suitable for fields without obstacles in the middle.

High brightness widescreen remote control

The DJI RC Plus features a 7-inch high-brightness display and an octa-core processor for smooth operations. Intelligent route planning minimizes distances traveled on a full tank, thereby significantly increasing operational efficiency. Manual mode allows you to control operations as you wish.

Signal Stability

The new, improved four-antenna O3 transmission system works offline even in areas without cellular coverage, providing a transmission range of 2 km. Its anti-interference capability helps ensure high signal quality when operating over tall crops.

DJI Relay (Optional)

The DJI Relay ensures smooth real-time video transmission for safer flights, even in complex operation scenarios with signal obstructions.

Fast and Fuel-Efficient Charging The D12000iE multifunctional inverter generator features electronic fuel injection (EFI) technology and saves fuel consumption by 15%. The DB1560 Intelligent Flight Batteries charge in an air-cooled heatsink, providing ultra-fast recharge in 9 minutes. The C10000 Smart Charger can charge batteries directly with electricity from the grid.

Aéronef

• Weight:
  • 39.9 kg (excluding battery)
  • 52 kg (with battery)
• Maximum take-off weight[1]:
  • For spraying: 92 kg (at sea level)
  • For spreading: 103 kg (at sea level)
• Maximum Diagonal Wheelbase: 2200 mm
• Dimensions:
  • Arms and propellers deployed: 2800×3085×820 mm
  • Arms extended and propellers folded: 1590×1900×820 mm
  • Arms and propellers folded: 1115×750×900 mm
• Hovering Accuracy (with a strong GNSS signal):
  • Enabled D-RTK: Horizontal: ±10 cm, Vertical: ±10 cm
  • Disabled D-RTK: Horizontal: ±60 cm, Vertical: ±30 cm (radar module activated: ±10 cm)
• RTK/GNSS Operating Frequency:
  • RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
  • GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
• Maximum Vol Rayon Configurable: 2000 m
• Maximum Wind Resistance: 6 m/sPropulsion System - Motors

• Stator Size: 100×33 mm
• KV: 48 rpm/V
• Power: 4000 W/rotor

Propulsion System - Propellers

• Material: Carbon fiber nylon
• Dimensions: 54 inches (1371.6 mm)
• Propeller Rotation Diameter: 1375 mm
• Quantity: 8

Dual Atomization Spray System - Spray Tank

• Material: Plastic (HDPE)
• Volume: 40 L
• Operational Payload [1]: 40 kg[1]
• Quantity: 1

Dual Atomization Spray System - Sprinklers

• Model: LX8060SZ
• Quantity 2
• Distance between Nozzles: 1570 mm (Rear Nozzles)
• Droplet Size: 50-500 μm
• Effective Spray Width [2]: 4-11 m (at a height of 3 m above crops)

Dual Atomization Spray System - Dispensing Pumps

• Type: Turbine Pump (magnetic drive)
• Quantity 2
• Single Pump Flow Rate: 0-12 L/min
• Maximum Flow: 16 L/min (2 nozzles); 24 L/min (4 nozzles)

Phased Antenna Array System

• Model: RD241608RF (forward phased antenna radar); RD241608RB (rear phased antenna radar)
• Terrain Following: Maximum slope in mountain mode: 20°
• Altitude Detection Range: 1-50m
• Stabilization Working Range: 1.5-30m

Obstacle Avoidance [4]

• Obstacle Detection Range (multi-directional): 1-50 m
• FOV:
  • Forward phased antenna radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  • Rear phased antenna radar: vertical 360°, horizontal ±45°
• Working Conditions: flying more than 1.5 m above the obstacle at a horizontal speed not exceeding 10 m/s and a vertical speed not exceeding 3 m/s.
• Safety Distance Limit: 2.5 m (distance between the front of the propellers and the obstacle after braking)

Binocular Vision System

• Measuring Range: 0.5-29m
• Effective Detection Speed: ≤10 m/s
• FOV: Horizontal : 90°, Vertical : 106°

Remote

• Model: RM700B
• Operating Frequency [5]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
• Max Transmission Distance: 7km (FCC), 5km (SRRC), 4km (MIC/CE) (unobstructed, interference-free, and at an altitude of 2.5m)

GNSS

• GPS+Galileo+BeiDou

Screen

• 7.02-inch LCD touch screen, with a resolution of 1920×1200 pixels, and a high brightness of 1200 cd/m2

Operating temperature

• -20° to 50° C (-4° to 122° F)

Storage Temperature

• Less than a month: -30° to 45° C (-22° to 113° F)
• One to three months: -30° to 35° C (-22° to 95° F)
• Six months to one year: -30° to 30° C (-22° to 86° F)

Loading time

• 2 hours for internal or internal and external battery (when remote controller is turned off and using a standard DJI charger)

• Aircraft x 1
• C8000 charger x 1
• Battery x 3
• Air-cooled heat sink x 1
• Toolbox x 1
• Remote control x 1
• Remote control strap x 1
• USB-C cable x 1
• Double-ended wrench x 1

Quel logiciel de traitement ou d'opération est recommandé?

Le DJI AGRAS T50 est compatible avec le logiciel DJI Terra, recommandé pour la planification de missions, le traitement des données, et l'analyse des opérations agricoles. DJI Terra offre des outils puissants pour la cartographie et l'analyse de données, permettant une gestion efficace des cultures et une prise de décision éclairée. Pour plus de détails sur les fonctionnalités et l'intégration de DJI Terra avec l'AGRAS T50, nous vous recommandons de consulter le site officiel de DJI ou la documentation spécifique au produit.
