DJI Zenmuse P1

Zenmuse P1: Your reference tool for aerial photogrammetry

Extraordinary efficiency

The P1 is equipped with a high-sensitivity, full-frame, low-noise sensor that can take a photo every 0.7s during flight and cover 3 km2 in a single flight.

Remarkable precision

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time between modules at the microsecond level, the Zenmuse P1 allows users to capture centimeter-accurate data combined with position and orientation in real time.

Robust versatility

Create 2D, 3D and detailed models with the built-in 3-axis gimbal that can be fitted with 24/35/50mm lenses and Smart Oblique Capture.

Full frame camera

• 45MP full-frame sensor
• 4.4μm pixel size
• Low-noise, high-sensitivity imaging extends daily operational time.
• Take a photo every 0.7s during the flight.
• TimeSync 2.0 aligns the camera, flight controller, RTK module and gimbal down to the microsecond.

Multiple fixed focus lens options

- Global mechanical shutter, shutter speed 1/2000 seconds

- Sends the median exposure pulse in microseconds

- Supports 24/35/50mm lenses with DJI DL mounts

Work smart, work fast

Intelligent Oblique Capture

Cover 7.5 KM2 in a single working day with the P1. Increase the efficiency of your oblique photography mission with the Smart Oblique Capture feature, where the gimbal automatically rotates to take shots at the various angles needed. Only essential reconstruction photos will be taken at the edge of the flight area, increasing post-processing efficiency by 20%-50%.

Smart Data Management

• Mission results files are automatically associated with the name and time of the mission.
• A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.
• Image metadata contains intrinsic and extrinsic camera settings and RTK status.

Field work report

Verify data quality immediately after flight by monitoring position data and number of frames acquired, as well as RTK status and positioning accuracy.

A mission mode for all scenarios

Orthomosaic 2D Mission

Generate orthomosaics without GCP using the P1, perfect for operations on medium to large surfaces.

3D Oblique Mission

Effortlessly acquire oblique images from multiple angles that meet 3D modeling requirements in industries such as urban planning and centimeter-accurate cadastral surveys to serve 3D reality models and smart city planning.

Real-time mapping mission

Gather geographic information over large areas in real time using DJI Terra so teams can quickly make critical decisions on the spot.

Zenmuse P1 use cases

Topographic mapping

Capture data that meets 1:500 scale accuracy requirements without PCBs.

Cadastral surveys

Quickly generate centimeter-accurate 3D reality models.

Architecture, Engineering, Construction and Surveying

Manage the full life cycle of a project with 2D and 3D drone data.

Natural resource management

Measure, classify or determine ownership of water bodies and forests.

Geological investigation

Safely collect millimeter-accurate aerial data at geohazard sites.

Modeling disaster sites

Get real-time overviews of large disaster areas to help teams make critical decisions.

Other types of DJI sensors offered at DroneXperts:

Zenmuse L1 : Superior precision LiDAR sensor

H20 and H20T: Hybrid sensors for entreprise missions

General

Product Name : ZENMUSE P1
Dimensions : 198×166×129 mm
Weight : About 800g
Power: 20W
IP index : IP4X

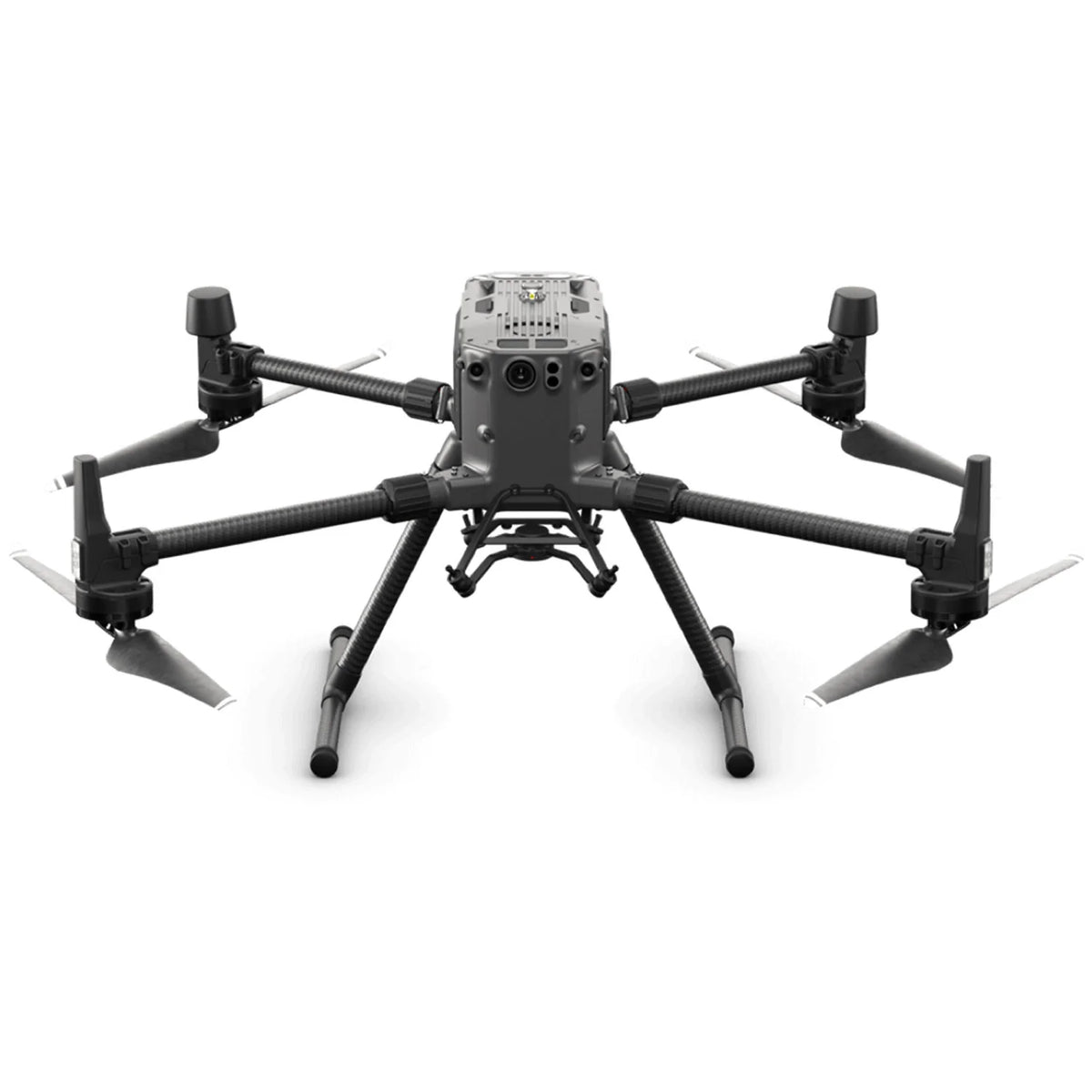

Drones supported : Matrix 300 RTK
Operating temperature range : From -20° to 50° C (from -4° to 122° F)
Storage temperature : From -20° to 60° C (from -4° to 140° F)
Absolute precision : Horizontal : 3 cm, Vertical : 5 cm *
* Using the mapping mission at a 3 cm GSD and a flight speed of 15 m/s, with a frontal overlap rate of 75% and a side overlap rate of 55%.

Camera

Sensor

Sensor size (photo) : 35.9×24mm (full frame)
Sensor size (maximum video recording area) : 34×19 mm
Effective Pixels : 45MP
Pixel size : 4,4 μm

Supported lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balance ring/filter), FOV 84°.
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°.
DJI DL 50mm F2.8 LS ASPH (with lens hood and balance ring/filter), FOV 46.8°.

Supported SD cards:SD: UHS-I or better; Maximum capacity: 512 GB

Storage files: Photo / Raw GNSS observation data / Image log file
Picture size : 3:2 (8192×5460)
Operating modes : Photo, video, playback
Minimum interval between photos : 0.7 s

Shutter speed:

Mechanical shutter speed: 1/2000*-1s
Electronic shutter speed: 1/8000-1s
*Aperture value no greater than f/5.6

Aperture range : f/2.8-f/16

Gamme ISO:
Photo : 100-25600
Video: 100-25600

Video

Video Format:MP4, MOV

Video resolution:

16:9 (1920×1080)
16:9 (3840×2160)*
*Only 35mm lens is supported

Frame rate : 60 frames per second

Gimbal

Stabilized system: 3 axes (tilt, roll, pan)
Angular vibration range : ±0.01°
Support : Detachable DJI SKYPORT
Mechanical range:
Tilt: -130° to +40°;
Roll: -55° to +55°;
Pan: ±320

1x DJI Zenmuse P1

Combos are possible according to your choice. A DroneXperts representative will be happy to advise you on the possibilities.

What is the resolution of the photos taken by the DJI P1?

The P1 takes photos with a resolution of 8192*5460, which is about 45 megapixels.

What image/video formats are supported?

Photos: JPEG, DNG, JPEG+DNG；
Videos: MP4, MOV

What is the camera's shortest continuous shooting interval?

0.7 seconds.

What is the mechanical shutter speed range of the P1?

1/2000s--1s.

What is the single pixel size of the P1?

4.4μm.

What lenses does the P1 support?

The P1 supports 24mm, 35mm and 50mm lenses with DL mounts.

Which drones support the P1? Which gimbal port can it be installed on?

The P1 is compatible with the Matrix 300 RTK, and can currently only be installed on the single down gimbal of the M300 RTK.

What position is recorded by the photos taken by the P1?

In photos taken by the P1, the position of the exit pupil at the center of the camera lens is recorded.

Does the lens allow you to zoom? How to focus during the operation?

Zooming is not currently supported. Initial waypoint autofocus and calibrated infinity focus can be used in Road mode. Manual focus is required in Manual mode.

What is the "Low-noise High-sensitivity" mode of the P1?

The P1's Low Noise and High Sensitivity mode can improve camera sensitivity (ISO) while reducing noise levels, expanding the range of actionable scenarios for the P1.

What are the features of the M300 RTK when used with the TimeSync 2.0 of the Zenmuse P1 aerial surveying solution?

Output exposure time interval in microseconds;
Time synchronization for camera, gimbal, flight control system and RTK;
All-new position and orientation compensation feature that writes the precise positions of the camera's exit pupils into the photos based on the positions and orientations of the drone and gimbal.
