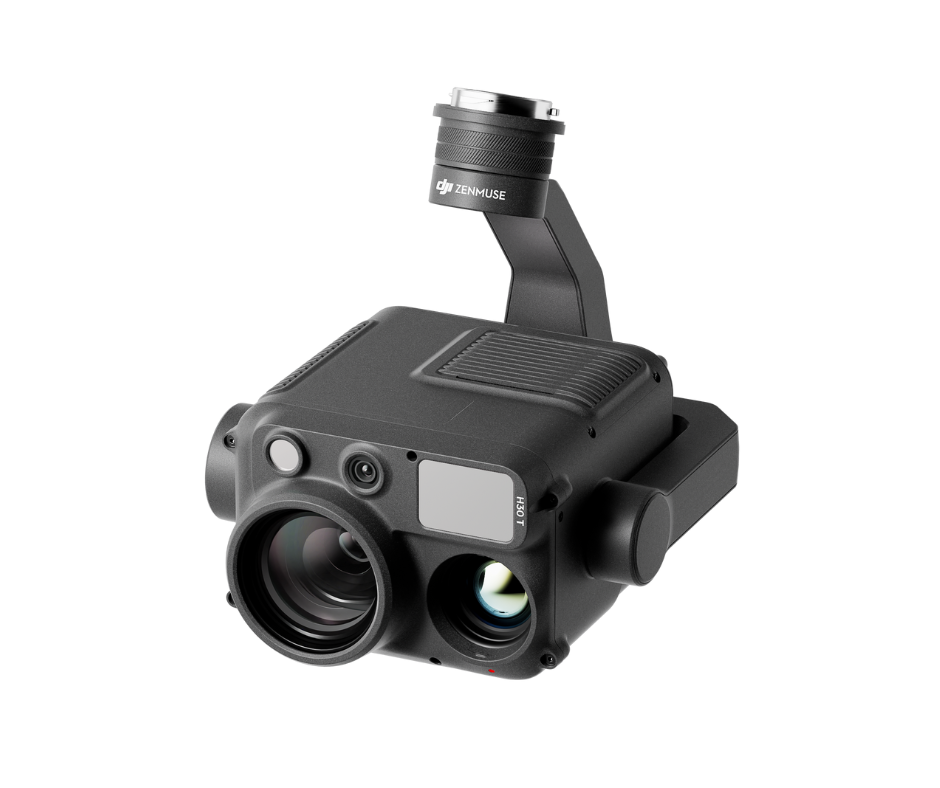

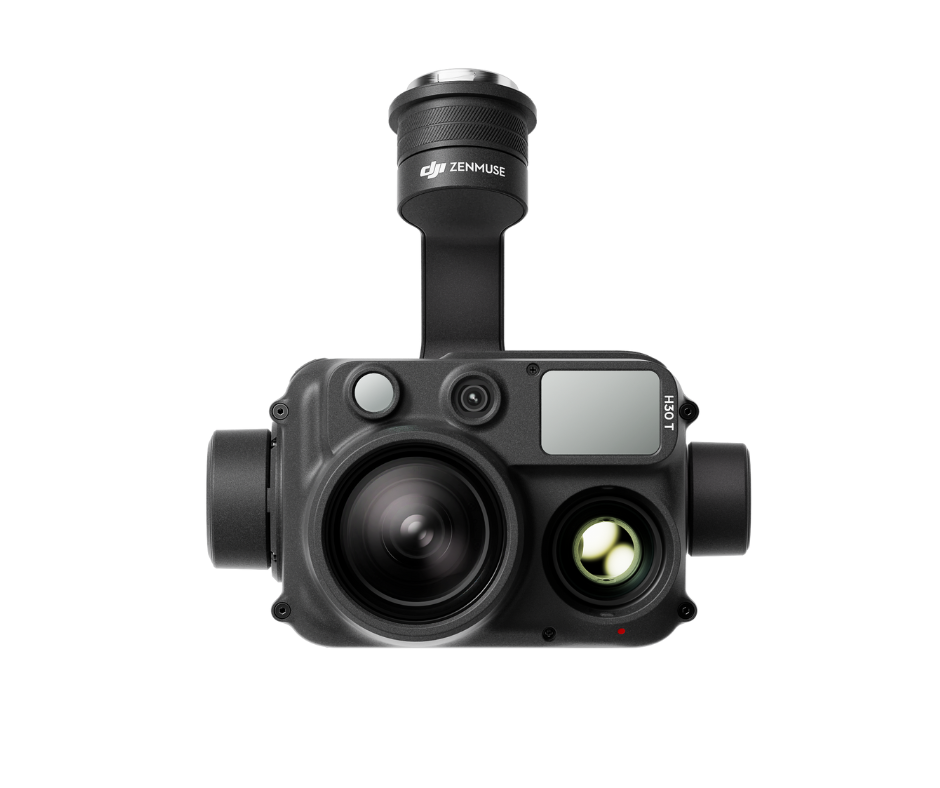

LOCATION - DJI Zenmuse H30T

Key Features:

• Wide-angle camera excellence: CMOS 48 MP sensor (1/1.3”) offering a resolution 3 times higher than previous models. Night mode with ISO up to 409,600.

• High-performance zoom: 40 MP zoom camera (1/1.8”) with 34x optical zoom and 400x digital zoom. Night mode with ISO up to 819,200.

• Advanced laser rangefinder: Precise distance measurement from 3 to 3000 m, with accuracy under 20 m at 1000 m.

• Auxiliary NIR lighting: 850 nm IR projector enhancing total visibility in darkness, covering a diameter of 8 m at 100 m.

Performance Improvements:

• Advanced night vision for optimal performance in low light.

• Increased resolution and zoom, with the zoom camera upgraded from 20 MP to 40 MP and optical zoom improved by 47%.

• Optimized rangefinder, with extended range up to 3000 m and improved accuracy for ultra-precise positioning.

The H30 series doesn’t just evolve, it redefines aerial imaging standards. Enjoy unparalleled visual quality for your operations.

Zenmuse H30 Series – Features and specifications

General

• Product name: Zenmuse H30 Series

• Dimensions: 170 × 145 × 165 mm

• Weight: 920 ± 5 g

• Power consumption:

  • H30: 26 W

  • H30T: 28 W

• Protection rating: IP54 (Resistance tested in laboratory according to IEC60529 standard, may deteriorate over time and use.)

• Compatibility:

  • Matrice 300 RTK (with DJI RC Plus)

  • Matrice 350 RTK

Environment

• Operating Temperature: -20° to 50°C (-4° to 122°F)

• Storage Temperature: -20° to 60°C (-4° to 140°F)

Stabilization system

• Gimbal: 3-axis stabilization (tilt, roll, pan)

• Angular Accuracy:

  • Hovering: ±0.002°

  • In Motion: ±0.004°

• Mount: Detachable DJI SKYPORT

• Mechanical Range:

  • Tilt: -132.5° to +73°

  • Roll: ±60°

  • Pan: ±328° (structural limit)

• Controllable Range:

  • Tilt: -120° to +60°

  • Pan: ±320°

• Operating Modes: Tracking, Free, Reset

Zoom Camera

• Sensor: CMOS 1/1.8’’ – 40 MP

• Lens:

  • Actual Focal Length: 7.1-172 mm (equivalent to 33.4-809.3 mm)

  • Aperture: f/1.6 - f/5.2

  • Field of View (DFOV): 66.7° - 2.9°

• Focus modes: Manual (MF), Continuous autofocus (AFC), Single autofocus (AFS)

• Exposure: Manual or automatic

• Exposure compensation: ±3.0 (in 1/3 increments)

• Electronic shutter speed: 1/8000 to 2 s

• ISO:

  • Photo: 100-25 600

  • Night mode: 100-819 200

• Video:

  • 3840×2160@30fps, 1920×1080@30fps

  • Night mode: 1920×1080 at 25/15/5 fps

• Supported formats:

  • Photo: JPG (max. 7328×5496)

  • Video: MP4 (H.264, H.265)

Wide-angle camera

• Sensor: CMOS 1/1.3’’ – 48 MP

• Lens:

  • Actual focal length: 6.72 mm (equivalent to 24 mm)

  • Aperture: f/1.7

  • Field of view (DFOV): 82.1°

• Focus: MF, AFC, AFS

• Exposure: Manual or automatic

• Exposure compensation: ±3.0 (1/3)

• Electronic shutter speed: 1/8000 to 2 s

• ISO:

  • Photo: 100-25 600

  • Night mode: 100-409 600

• Video:

  • 3840×2160@30fps, 1920×1080@30fps

  • Night mode: 1920×1080 at 25/15/5 fps

• Supported formats:

  • Photo: JPG (max. 8064×6048)

  • Video: MP4 (H.264, H.265)

Thermal camera (H30T only)

• Sensor type: Uncooled VOx microbolometer

• Lens:

  • Actual focal length: 24 mm (equivalent 52 mm)

  • Aperture: f/0.95

  • Field of view (DFOV): 45.2°

• Digital zoom: Up to 32×

• Video resolution: 1280×1024@30fps

• Video format: MP4 (H.264, H.265)

• Photo: R-JPEG (1280×1024)

• Thermal sensitivity (NETD): ≤ 50 mK@f/1.0

• Thermal measurement range:

  • High sensitivity: -20° to 150°C (-4° to 302°F), extendable to 450°C with a filter

  • Low sensitivity: 0° to 600°C (32° to 1112°F), extendable to 1600°C with a filter

• Sun exposure protection: Yes

• Thermal analysis modes: Single point, area, central temperature

• Color palettes: White Hot, Black Hot, Iron Red, Rainbow, Medical, Arctic, etc.

Laser rangefinder

• Wavelength: 905 nm

• Measurement range:
