DJI MATRICE 400 - SP Plus - Complete Set
The DJI Matrice 400 is the new benchmark for industrial drones: 59 min of flight, up to 6 kg payload, O4 transmission and intelligent detection. Versatile, powerful and ready for critical missions.
Turnkey solution with all the necessary equipment for your missions.
The DJI Matrice 400 redefines the standards of the professional drone industry. Equipped with the new O4 Enterprise transmission, a sensor fusion navigation system, and compatible with TB100 batteries (up to 400 cycles), it enables safer, longer, and more efficient operations.
With a flight time of up to 59 minutes, a maximum payload of 6 kg, and the ability to carry up to 4 data payloads simultaneously, the Matrice 400 is built for the challenges of sectors such as energy inspection, mapping, public safety, or missions in complex environments.

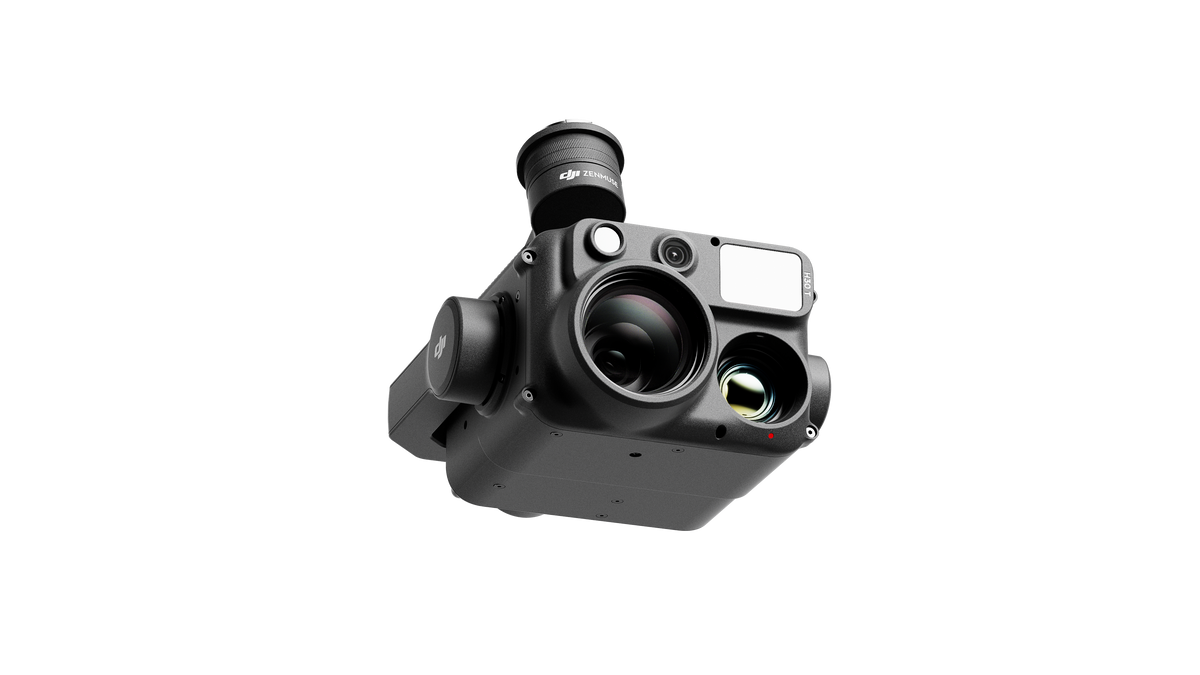

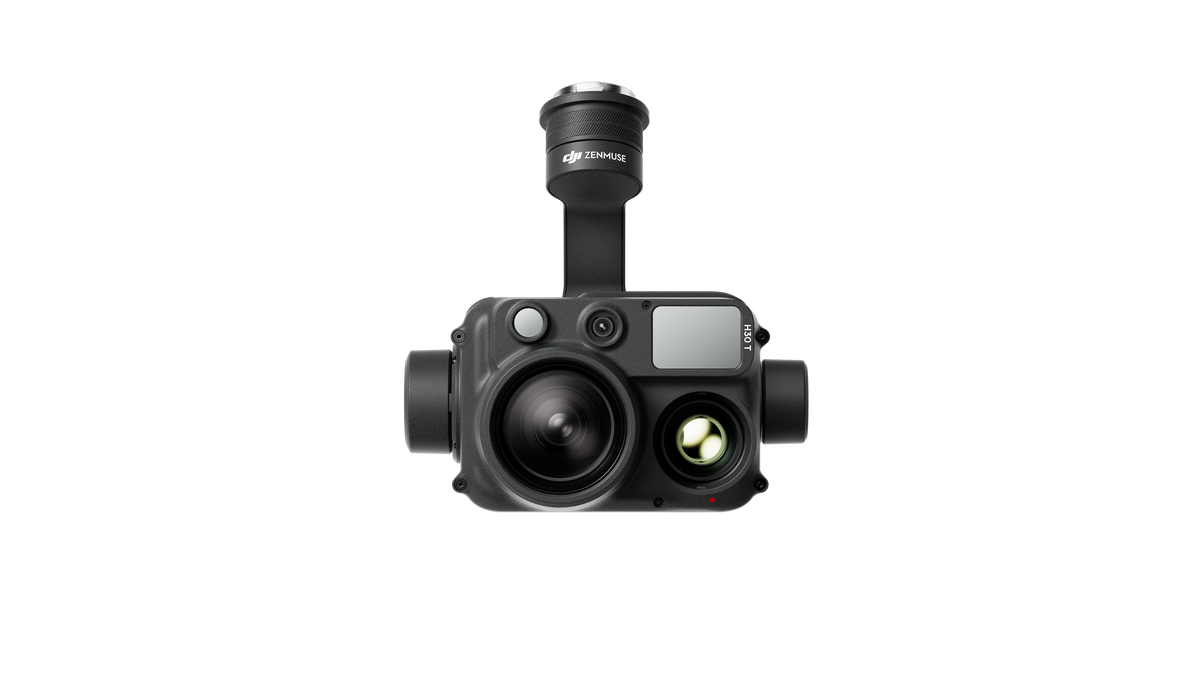

Its extensive compatibility with Zenmuse L2, P1, H30 Series, S1, and V1 sensors, combined with intelligent detection (vision, LiDAR, mmWave radar) and advanced features like AR projection, manual terrain tracking, or FlyTo, makes it a complete solution for demanding operators.
The M400 is also designed to be more durable with structural improvements, an IP55 rating, increased wind resistance, and extended automation features.
Aircraft
| Feature | Detail |
| Takeoff weight (without batteries) | 5,020 ± 20 g |
| Takeoff weight (with batteries) | 9,740 ± 40 g |
| Maximum takeoff weight | 15.8 kg |
| Maximum payload | 6 kg |
| Dimensions (open) | 980 × 760 × 480 mm (with landing gear) |
| Dimensions (folded) | 490 × 490 × 480 mm |
| Diagonal wingspan | 1 070 mm |
| Propeller diameter | 25″ |
Flight performance
| Indicator | Value |
| Maximum horizontal speed | 25 m/s (≈ 90 km/h) |
| Maximum ascent speed | 10 m/s |
| Maximum descent speed | 8 m/s |
| Wind resistance | 12 m/s at takeoff/landing |
| Maximum roll angle (pitch) | 35° |
| Maximum rotation (yaw) | 100°/s |
| Maximum service altitude | 7 000 m |
| Endurance (horizontal flight 10 m/s) | 59 min |
| Endurance (hovering) | 53 min |
| Maximum distance traveled | 49 km |
Environment
| Condition | Specification |
| Flight temperature | -20 °C to +50 °C |
| Protection rating | IP55 |
Navigation & Detection
| Functionality | Detail |
| GNSS | GPS |
| Hovering accuracy (visual / GNSS / RTK) | ±0.1 m / ±0.5 m / ±0.1 m (vertical) |
| ADS-B in radar | ~20 km range |
| Detection systems | Omnidirectional vision, rotating LiDAR, mmWave radar |
Payload & interfaces
| Element | Detail |
| Gimbal connectors | • Dual gimbal: 950 g / • Triple: 3 kg (quick) or 6 kg (screw) |
| E-Port V2 port (x4) | 120 W each |
| Link slots: Cellular Dongle (×2) | Interface for Cellular/Dongle 2 |
Video transmission (O4 Enterprise)
| Element | Detail |
| Quality | 3× 1080p/30 fps |
| Max range (FCC) | 40 km |
| Max range (CE/SRRC/MIC) | 20 km |
| Antennas | 6 vertical + 2 horizontal WLAN, 2 sub2G, 4× 4G |
| Band & transmitter power | Multi-band, power according to standards |
Battery & charging
| Element | Detail |
| Model | TB100 Li‑ion 13S, 20,254 mAh, 48.23 V, 977 Wh |
| Battery weight | 4,720 ± 20 g |
| Charge/discharge temperatures | Charging 5‑45 °C, usage –20 °C to +75 °C |
| Cycles | 400 cycles |
| Output power | 4C, 2C charging, including self-heating |
BS100 smart charging station
| Specifications | Detail |
| Weight | 11.8 kg |
| Dimensions (L×W×H) | 605 × 410 × 250 mm |
| Supported batteries | TB100, TB100C, WB37 |
| Food | AC 100‑240 V, 10 A |
| Charging power | Up to 2,184 W |
| Charging modes | Standard, fast, quiet |
| Charging time for TB100 (0→100 %) | 45 min (fast), 110 min (quiet) at 220 V |
Remote control – DJI RC Plus 2
| Element | Detail |
| Video transmission | O4 Enterprise, range up to 40 km |
| WiFi transmitter & receiver | 2T4R, dual-band up to 1,774 Mb/s |
| Bluetooth | 5.2, EIRP < 10 dBm |
| Screen | 7″, 1,920 × 1,200, 1,400 nit |
| Storage & RAM | 8 GB + 128 GB UFS, microSD |
| Built-in battery | 46.8 Wh (≈ 3.8 h), external WB37 37 Wh (3.2 h) |
| Port & connectivity | HDMI, USB-C PD 65 W, USB-A |
| Operating & charging temperatures | –20 °C to +50 °C; charging 5–40 °C |
| Item | Quantity |
| DJI Matrice 400 (with propeller mounts) | 1 |
| Carrying case | 1 |
| Propellers (pair) | 2 |
| Washers and screws for propellers | 6 |
| DJI RC Plus 2 remote control (sub2G) | 1 |
| Power cable | 1 |
| Intelligent flight battery | 1 |
| WB37 battery | 1 |
| BS100 battery station | 1 |
| Landing pads | 2 |
| USB-C to USB-C cable | 1 |
| Tool and screw kit | 1 |
| Cleaning tools | 1 |
| Gimbal dampers | 4 |
| Strap and remote control holder | 1 (with screws) |
✅ DJI Care Enterprise Plus – Includes 1 year
-
Free repairs, including accidental damage and water damage
-
Replacement of one battery per year
-
Free round-trip shipping
-
Renewable coverage up to 3 years (max 2 times)
-
Applicable in Canada
🔗 Details: djicare-enterprise
Choosing the right combo
Included equipment | SP Plus - Complete Set | SP Plus Combo |
Matrice 400 SP drone | ✅ | ✅ |
DJI RC Pro 2 remote control | ✅ | ✅ |
TB100 batteries | ✅ (x2) | ❌ |
BS100 charging station | ✅ | ❌ |
Spare propellers | ✅ | ✅ |
Carrying case | ✅ (x1) | ✅ (x1) |
Remote control harness | ✅ | ❌ |
Cables & tools | ✅ | ✅ |
