DJI FLYCART 30

DJI presents the FlyCart 30, a revolutionary solution for package delivery. This long-reach heavy lift device combines powerful communication and optimal intelligence to ensure exceptional performance. Featuring Cargo and Winch modes, the FlyCart 30 goes beyond traditional logistics limitations, providing an innovative, reliable, cost-effective and highly efficient air transportation solution.

Whether for express deliveries or complex logistics operations, the DJI FlyCart 30 guarantees unparalleled security. Its ingenious design and advanced features make it an ideal partner for businesses looking to optimize their delivery processes. With its ability to overcome logistical challenges, the FlyCart 30 positions itself as a leading choice to meet the growing needs of the air parcel transportation industry.

Heavy payloads, long distances

• Maximum payload 30kg
• 28 km flight distance without payload
• 16 km flight distance with full payload
• Max speed 20 m/s
• The first three indicators are measured in dual battery mode.



Designed for any extreme condition

• Max flight altitude 6,000 m
• Operating temperature: -20 to 45°C (-4 to 113°F)
• Max. wind resistance speed 12 m/s

Strong signal

• O3 video transmission over 20 km
• Dual operator mode
• High resolution FPV camera gimbal

Advanced security and intelligence

• IP55 protection rating and corrosion resistance
• Two radars, dual binocular vision, intelligent obstacle detection
• Double batteries and parachute

Convenient configurations

• Foldable
• EPP 70 L cargo box
• Winch system



Fully automatic operation

• DJI Pilot 2
• DJI DeliveryHub
• Hospital Management System



Deliver the essentials, where they matter

High payload capacity and long flight distance overcome logistical limitations for next-generation deliveries.

• 30kg: Maximum payload. (double batteries)
• 40kg: Max. payload (single battery)
• 28km: Max flight distance without payload (double batteries )
• 16km: Max flight distance. with full payload (dual batteries)
• 20m/s: Maximum flight speed. (with carbon fiber propellers)
• 15m/s: Cruising speed



All-season performance

Withstands 24-hour operations, at altitude and in extreme weather conditions.

• 6,000 m: Max flight altitude.
• -20 to 45°C (-4 to 113°F): Operating temperature
• IP55: Protection index
• 12 m/s: Max. wind resistance speed.



Safe and reliable delivery

Guaranteed safety from takeoff to landing.

Integrated parachute

In an emergency, the built-in parachute can deploy at low altitude and land the drone safely, reducing risks to people and property. The parachute has its own automatic start-up control, independent power supply, sound and light alerts and the propellers stop rotating before opening.



Intelligent obstacle detection

DJI FlyCart30 is equipped with front and rear phased array radars and a dual binocular optical system for intelligent multi-directional obstacle detection. An integrated ADS-B signal receiver detects and alerts crews of nearby aircraft.



Multi-level redundancy

DJI FlyCart 30 is designed with high redundancy to ensure flight safety, even in harsh environments.

Powered by a dual battery system, if a single battery fails in flight, the second battery ensures the drone flies and returns safely.< span class="EOP SCXW205168198 BCX8" data-ccp-props="{"201341983":0,"335559739":160,"335559740":259}">



Strong signal, stable transmission

DJI FlyCart30 supports DJI O3 video transmission over max. of 20 km. Its four-antenna transceiver intelligently selects the optimal antenna to transmit signals and improve anti-interference capabilities. Strengthen connection and stability with a DJI Cellular Dongle that can work in tandem with DJI Video Transmission O3. In case of interference with O3 video transmission, the 4G network ensures signal stability and video transmission, improving flight safety even in complex environments.



Fluidity and ease of control

DJI RC Plus features a 7-inch high-brightness display and supports dual mode operator. This mode allows two operators to easily transfer control permissions to meet various operating requirements.



Designed for harsh environments

• IP54 rating: Water and dust resistance
• -20 to 50°C (-4° to 122°F): Suitable for extreme environments

Stable video transmission and long battery life

• O3 four-antenna video transmission over 20km : Intelligently selects the optimal antenna to transmit signals for more stable video transmission.
• 4G Enhanced Video Transmission : The remote controller can connect to Wi-Fi or a mobile network using a DJI Cellular Dongle to achieve 4G enhanced video transmission.
• Extended 6 hour battery life: Internal and external battery configuration powers the remote control for 6 hours[16] and allows hot swapping for smooth, uninterrupted flight operations.



Choose your payload configuration

Cargo mode or Winch mode facilitates the delivery of the payload depending on its destination.

Cargo mode: aerodynamic and stable

• Max capacity 70 l
• Maximum payload 30 kg (double batteries)
• Maximum payload 40 kg (single battery)

*The Winch System kit is sold separately.



DJI FlyCart 30 comes standard with a cargo box EPP[12] which makes loading and transporting easier unloading.

Weight and center of gravity sensing ensures balanced cargo for safe and stable flight.



Winch mode: flexible and precise

• Maximum payload 30 kg (double batteries)
• Maximum payload 40 kg (single battery)
• Max speed cable of 0.8 m/s
• Max length 20 m cable

*The Winch System kit is sold separately.

The winched cargo is carried by a retractable cable, controllable manually or automatically. Cargo releases automatically upon landing and does not require manual detachment, ensuring safe and accurate delivery.

DJI FlyCart30 can intelligently adjust its position to minimize cargo swing and improve stability. For extreme situations where suspended cargo gets stuck or tangled, you can heat and cut the winch cable, freeing the drone.

Complete solution for drone delivery

DJI Pilot 2 and DJI DeliveryHub offer a powerful, efficient and flexible complete solution for managing drone deliveries.



Simplified delivery at your fingertips

DJI Pilot 2 displays real-time flight status, cargo position and other interactive interfaces for efficient and safe operation with DJI FlyCart30. data-ccp-props="{"201341983":0,"335559739":160,"335559740":259}">



Real-time flight safety alerts

Check battery level, power status and mileage in real time, and monitor the accessibility of the destination point to ensure safe operation.

Aircraft

Characteristic	Value
Weight	42.5 kg (without battery) 65 kg (with two DB2000 batteries)
Maximum takeoff weight	95 kg (with cargo, at sea level)
Maximum diagonal wheelbase	2200mm
Dimensions	1590 x 1900 x 947 mm (arms unfolded, propellers folded) 2800 x 3085 x 947 mm (arms and propellers unfolded) 1115 x 760 x 1027 mm (arms and propellers folded)
Folding method	Towards the body
Quantity of chargeable batteries	2
Hovering range (empty weight, with maximum battery capacity)	29 min (dual battery mode) 15 min (single battery mode) The data was measured under controlled conditions: zero altitude and no wind environment, for reference only.
Hovering range (maximum weight, with maximum battery capacity)	18min (30kg load, dual battery mode) 15min (40kg load, single battery mode) The data was measured under controlled conditions: zero altitude and no wind environment, only for reference.
Maximum flight distance (empty weight, with maximum battery capacity)	28 km (dual battery mode) 12 km (single battery mode) Data was measured under controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s.
Maximum flight distance (maximum weight, with maximum battery capacity)	16 km (30 kg load, dual battery mode) 8 km (40 kg load, single battery mode) Data was measured in a windless experimental environment, at zero altitude, at a constant speed of 15 m/s , for reference only.

Power system

Characteristic	Value
Stator size	100x33mm
Motor KV value	48rpm/V
Maximum engine power	4000W/rotor
Propeller material	Carbon fiber composite
Propeller diameter	54 inches
Propeller type	Double-blade folding propeller
Main rotor diameter	1375mm
Quantity of rotors	8

LED Light

Characteristic	Value
Effective illumination distance	10m
Lighting mode	60 Hz, turns on automatically depending on ambient light

DJI O3 Image Transmission

Characteristic	Value
Model	Pigeon (with DDR)-2T4R
Effective signal distance	20 km (FCC) 8 km (CE/SRRC/MIC)
Operating frequency	2.4000 to 2.4835 GHz 5.725 to 5.850 GHz Some regions or countries do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.
EIRP (Effective Isotropic Radiated Power)	2.400 GHz - 2.4835 GHz: <33 dBm (FCC) <20 dBm (CE/SRRC/MIC) 5.725 GHz - 5.850 GHz: <33 dBm (FCC) <30 dBm (SRRC) <14 dBm (CE)
Data security	AES-256
ADS-B (Automatic Dependent Surveillance–Broadcast)	Supported

Forward and rearward pointing active array radar

Characteristic	Value
Model number	RD241608RF (Forward) RD241608RB (Reverse)
Altitude detection	Fixed altitude range: 1.5-200m
Rear obstacle avoidance	Sensitive distance (rear): 1.5-50 m FOV: Forward: 360° horizontal, ±45° vertical, ±45° up Rear: ±45° horizontal, 360° vertical Operational conditions: Available during takeoff, landing and climbing when an obstacle is more than 1.5 m from the aircraft Safety distance: 3.5 m (distance between the tip of the propeller and the obstacle when the aircraft is in suspension after braking) Direction of detection: Multidirectional

Binocular vision system

Characteristic	Value
Field of view (FOV)	Horizontal: 90; Vertical: 106°
Work environment requirements	Normal lighting with clearly textured surfaces

FPV Camera

Characteristic	Value
Resolution	1920x1440
FOV (Field of View)	149°
Frame rate	30 frames per second
Kind	Full HD Monocular FPV Camera with Single-Axis Gimbal
Fill light	Supported

Cargo

Characteristic	Value
Dimensions	754x472x385mm (LxWxH)
Interior space	573x416x305mm (LxWxH)
Material	EPP plus aluminum alloy frame
Weighing function	Supported
Weight	About 3kg
Charge capacity	0~40kg

Parachute

Characteristic	Value
Maximum charge	≤ 95kg
Dimensions	300 x 200 x 120 mm (L x W x H)
Weight	Approx. 2.1kg
Automatic reaction time	Approx. 1000ms
Descent speed	≤ 6 m/s (at sea level, no wind)
Parachute shape	Square
Material	Nylon
Area surface	Approx. 22 m²
Minimum opening height	60m
Operating temperature	-20°C to 45°C
IP protection rating	IP55
Main panel battery life after shutdown	≥ 1 hour
Memory card capacity	Real-time recording for 10 flights
Audible alarm	Supported
Light alarm	Supported
Manual opening	Supported
Automatic opening	Supported

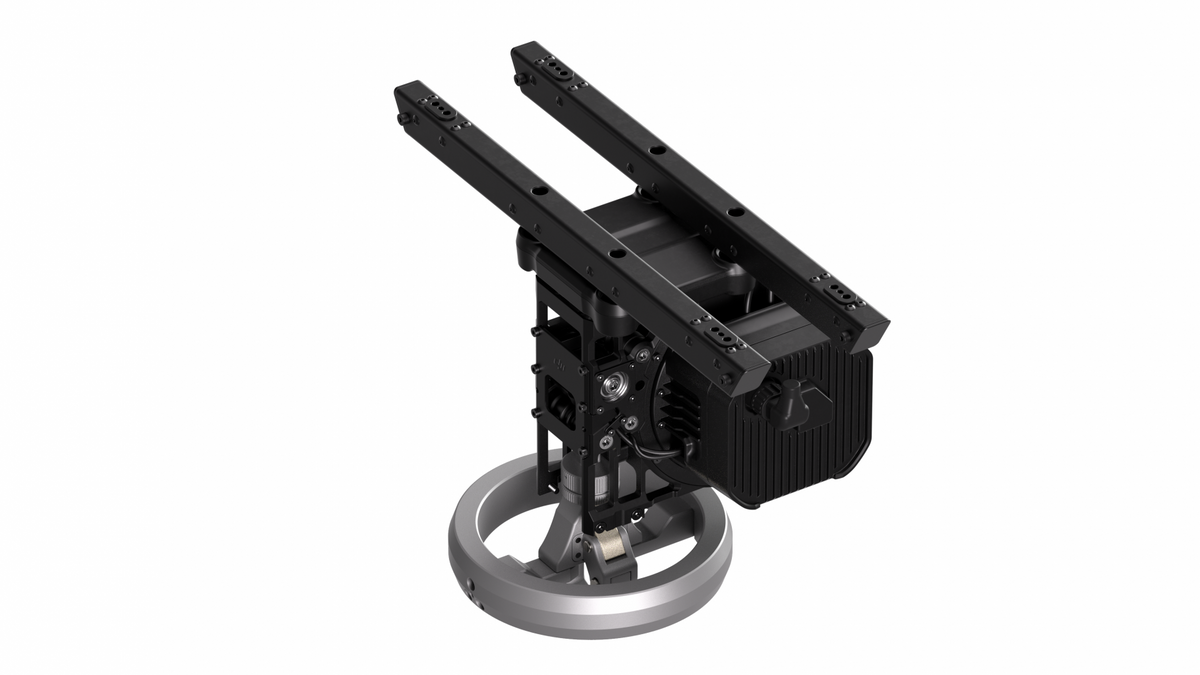

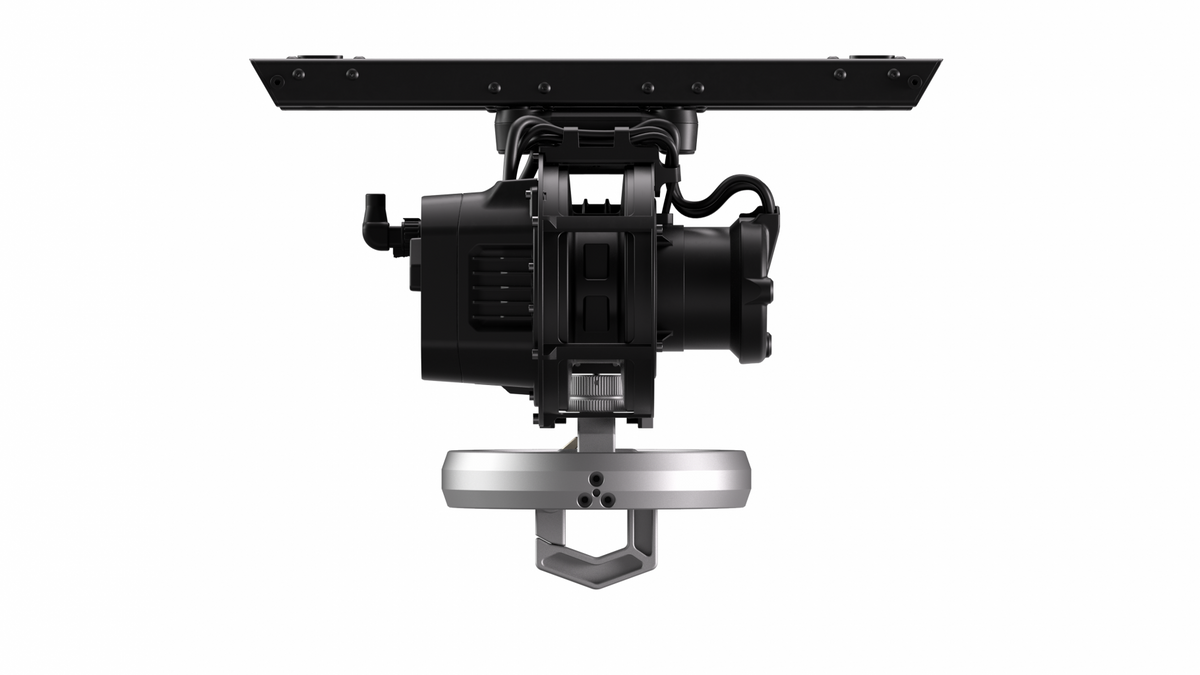

Winch system (optional)

Characteristic	Value
Model	A2EWI-30A
Dimensions	252 x 195 x 193 mm (L x W x H)
Body weight	2.5 kg (Without lump and torque)
Lump weight	1.9kg
Weight of the couple	0.6kg
Touch release function	Supported
Charge capacity	"530 kg (double battery) 540 kg (single battery)"
Cable length	20m
Maximum retraction speed	0.8 m/s
Operating temperature	-20°C to 45°C
IP protection rating	IP55
Weighing function	Supported
Emergency rescue function	Supported
Anti-sway function	Supported
Manual operation	Supported
Automatic operation	Supported
Deceleration protection	Supported

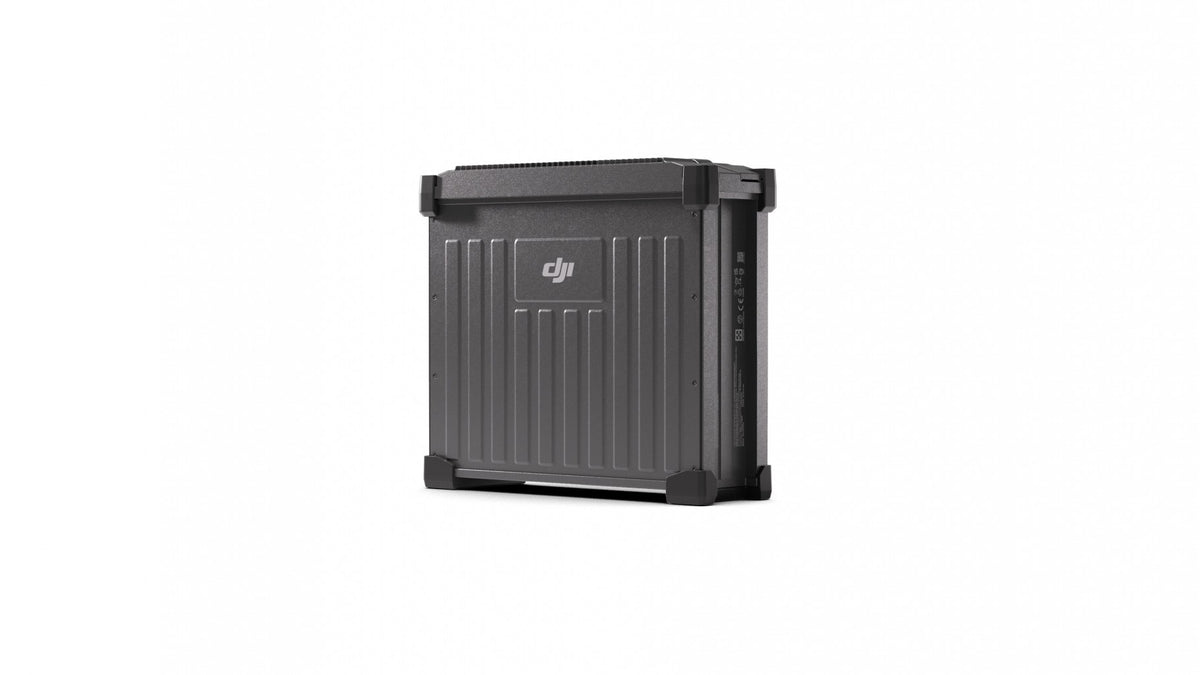

DJI DB2000 Smart Battery

Characteristic	Value
Model	DB2000
Ability	38000mAH
Nominal voltage	52.22V
Kind	14S1P
Energy	1984.4 Wh
Weight	Approx. 11.3 kg
Installation method	Socket
Dimensions	316 x 152 x 279 mm (L x W x H)
Operating temperature	-20°C to 45°C
The taxes	“5 to 15°C: 1.0C 15 to 45°C: 2.5C”
Maximum charging power	5700W
Automatic heating function	Supported (When the battery temperature is lower than 10°C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is lower than 20°C, connect the charger to the battery will activate the self-heating function. Charging and discharging in a low temperature environment may shorten the battery life.)

DJI C8000 Smart Charger

Characteristic	Value
Model	CHX101-7000
Entrance	90~264 VAC
Exit	42~59.92 V DC
Maximum output power	"7200 W (Dual input) 3600 W (Single input)"
Quantity of output channels	2
Protective function	The function is designed to address problems such as overheating, overvoltage, undervoltage, short circuit, fan stop, etc.
Operating temperature	-20°C to 45°C
Charging safety	Connector protection function available

Remote

Characteristic	Value
Kind	DJI RC Plus
Application	DJI Pilot 2
Operating frequency	"2,400 GHz2.483 GHz 5.725 GHz5,850

• Aircraft Body x1
• Remote control x1
• Remote control strap x1
• WB37 battery x1
• Battery Cover x1
• DJI 100W USB-C Power Adapter x1
• Safety glasses x1
• USB-A to USB-C cable x1
• USB-C to USB-C cable x
