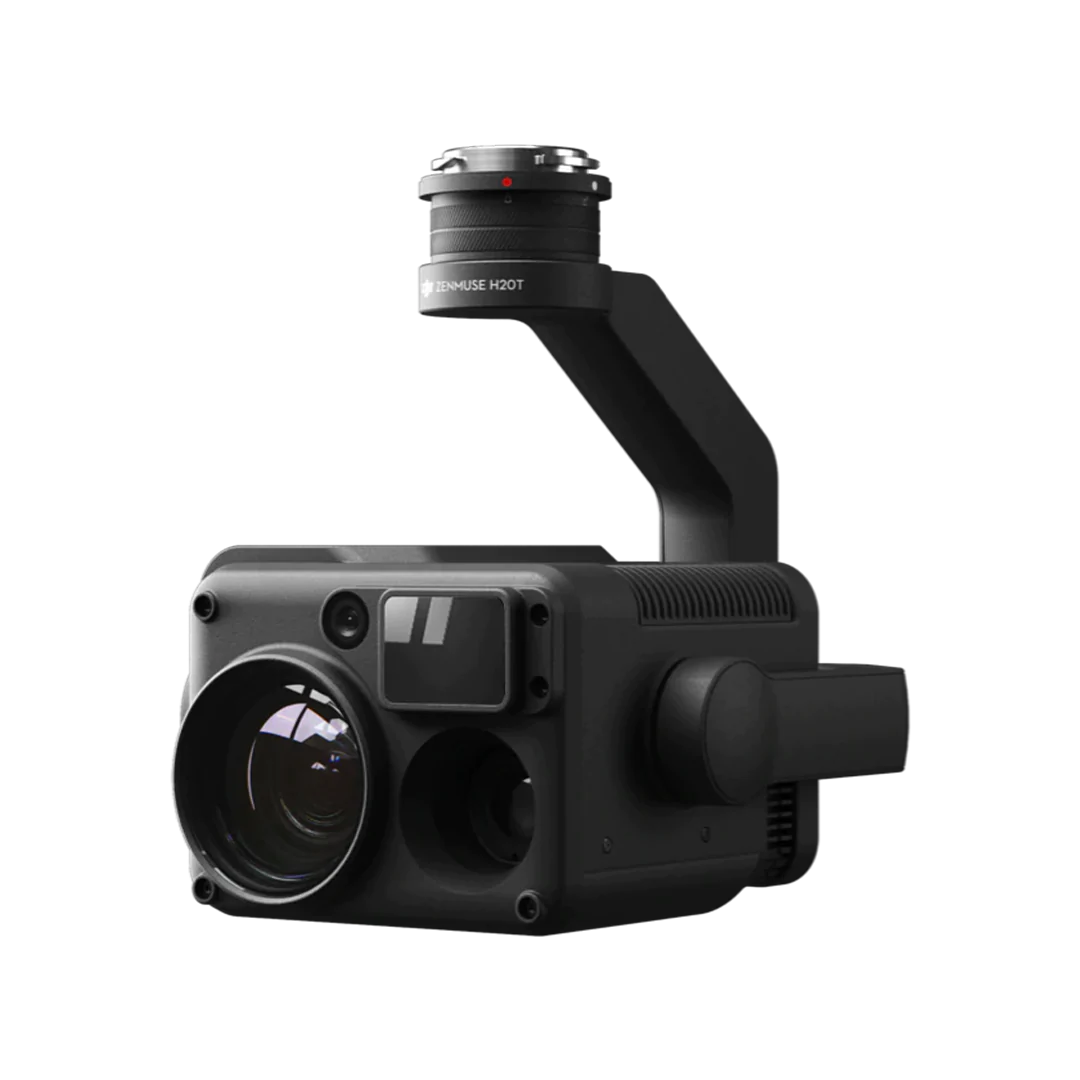

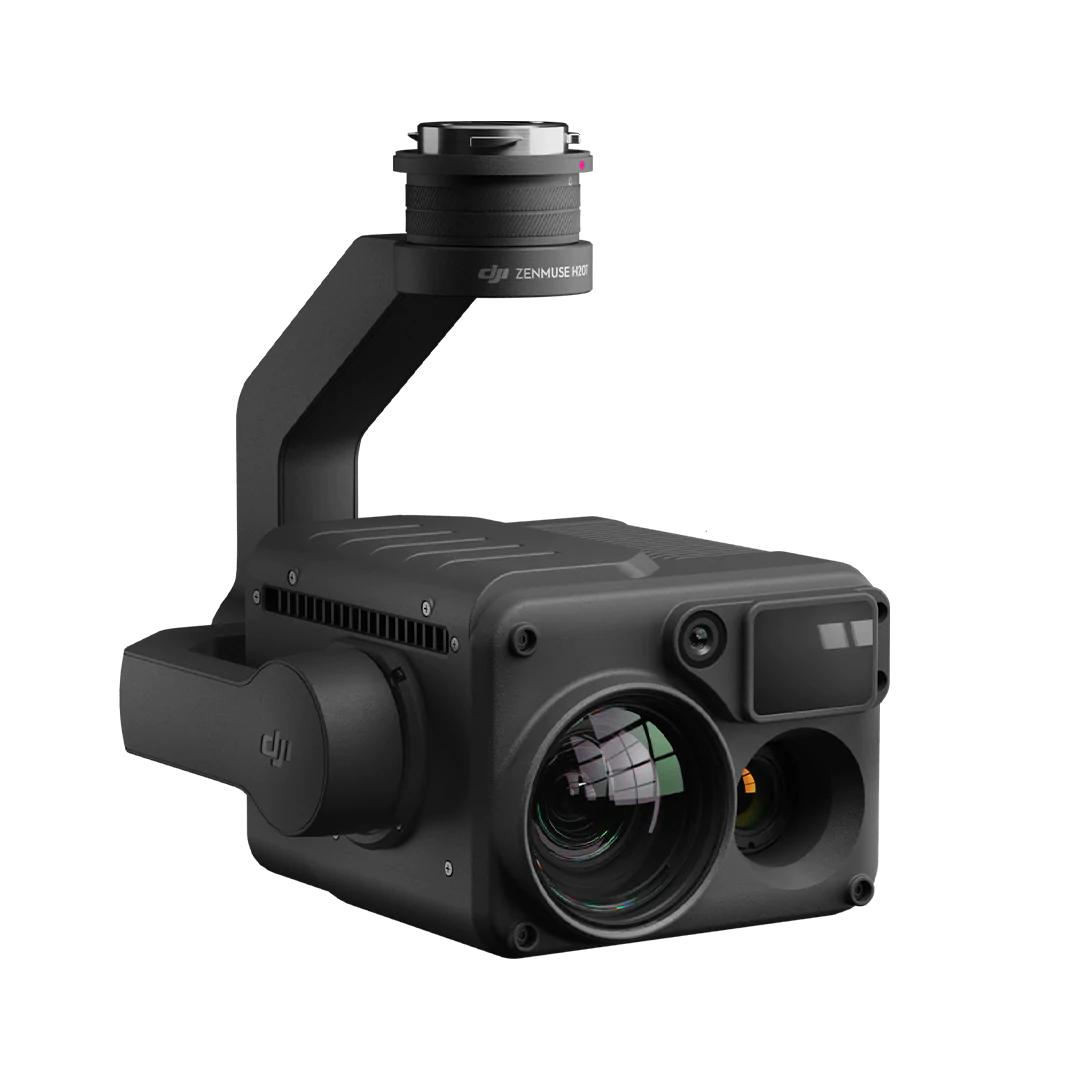

DJI Zenmuse H20T

H20T - Solution quadricapteurs

• 20 MP zoom camera
• 12 MP wide-angle camera
• 1200m LRF
• Thermal radiometric camera 640×512 px

All the sensors you need - in one

Capture everything. Near or far. In bright colors or thermal. An integrated laser rangefinder (LRF) measures the distance of an object up to 1200 m. A powerful, integrated payload that unlocks advanced intelligent capabilities for DJI's industrial drone platforms.

Powerful zoom camera

• 23× hybrid optical zoom, 200× maximum zoom
• 1/1.7" 20 MP CMOS sensor
• Video resolution: 4K/30fps

Large camera

• Equivalent focal length: 24mm, DFOV: 82.9°.
• 1/2.3" 12 MP CMOS sensor

Laser rangefinder

• Range: 3 m - 1200 m
• Accuracy: ± (0.2 m + D×0.15%)

Radiometric thermal camera

• DFOV : 40.6°

The all-in-one

Multi-sensor payloads

Get the big picture without missing any details, wherever or whenever your mission takes place.

Integrated user interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV in wide or thermal view.

Smart ways to collect data

AI Spot-Check

Automate routine inspections and get consistent results every time. On-board AI recognizes the pre-marked topic of interest in subsequent automated missions to ensure consistent framing.

High resolution grid photo

Frame an area of ​​interest in a wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored with an overall picture that can be viewed in more detail.

PinPoint

With a simple touch, you mark an object in view. Advanced sensor fusion algorithms immediately provide its coordinates.

His followers are intelligent

Identify and track moving subjects such as people, vehicles and boats with the auto zoom feature, while continuously acquiring the dynamic location of the subject.

View temperatures immediately

Accurate temperature measurement

Monitor the temperature of a site or property to eliminate risk by obtaining an accurate air temperature reading.

Smart functions

Temperature alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms

Visualize a specific band of temperatures to find what's important.

Color palettes

Adjust the colors applied to thermal data based on the needs of specific scenarios.

Earning methods

Adjust the gain modes to change the temperature range captured: High gain mode covers a smaller temperature range but is more sensitive to temperature differences; Low gain mode covers a wider temperature range.

Images R-JPEG

Images captured by the Zenmuse H20T are in R-JPEG format with embedded temperature information. By importing these images into DJI's thermal analysis tool, you can measure temperature and adjust parameters such as emissivity and reflected temperature.

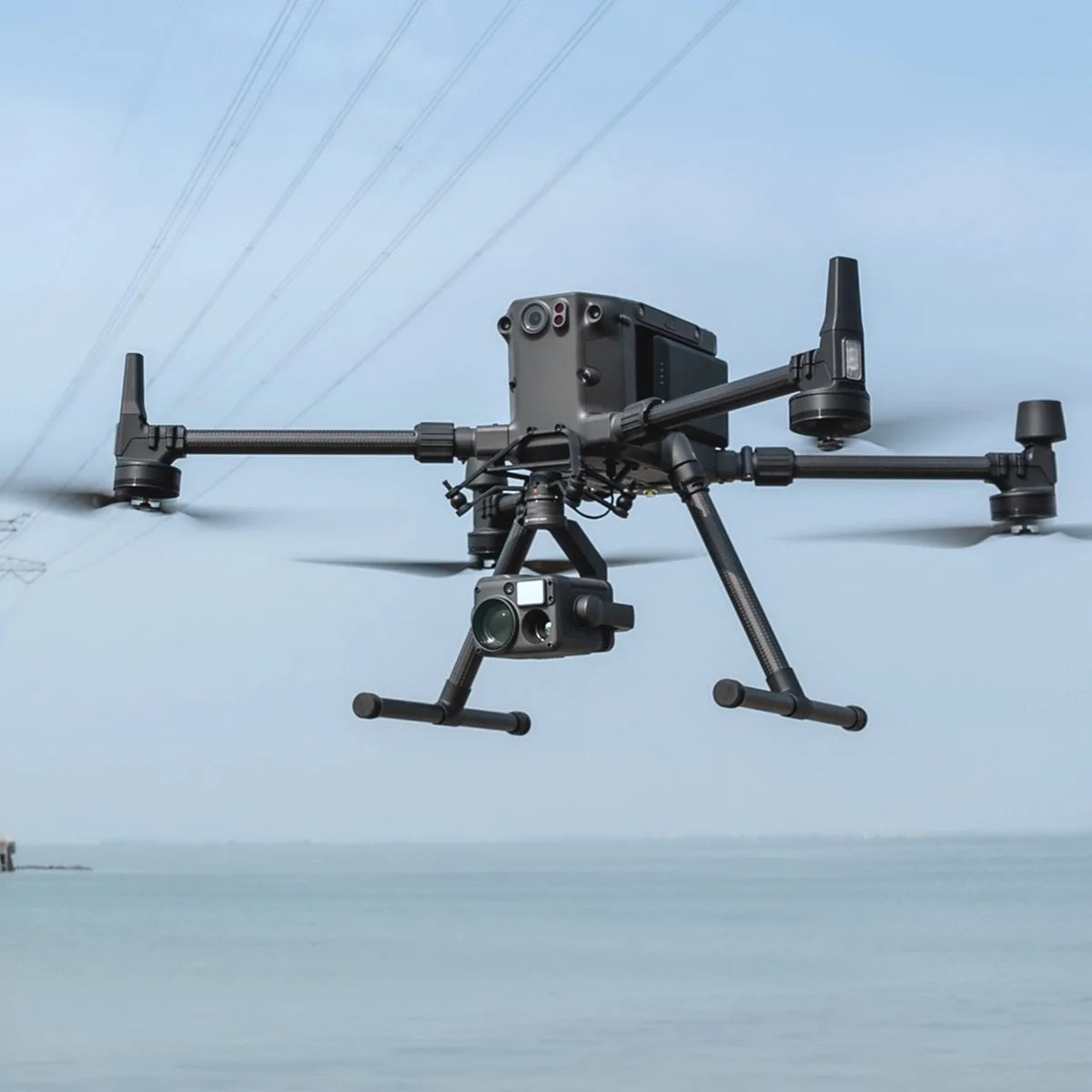

The optimal solution for the Matrice 300 RTK

Use case

Fight against the fire

Fight fires and save lives without endangering personnel.

Search and rescue

Act quickly to locate missing people and better plan rescue missions.

Law application

Quickly assess a situation and plan accordingly while improving the safety of officers and bystanders.

Power Line Inspection

Easily visualize extensive power line networks in remote areas.

Oil and gas

Perform inspections of pipelines, well sites and more while keeping workers away from risky areas.

General

Weight
Zenmuse H20 : 678±5 g
Zenmuse H20T : 828±5 g

Dimensions
Zenmuse H20 : 150×114×151 mm
Zenmuse H20T : 167×135×161 mm

Intrusion protection rating: IP44

Operating Temperature: -20° to 50° C (Temperature measurement is only available from -10° to 50° C)
Storage temperature: -20° to 60° C
Laser Safety: Class 1M (IEC 60825-1:2014)
Supported Drones: Matrix 300 RTK

Dreadlocks

Angular vibration range: ±0.01°
Mount: Detachable

Controllable Range:
Pitch: -120° to +30
Yaw: ±320

Mechanical range
Pitch: -132.5° to +42.5
Yaw: ±330
Roll: -90° to +60

zoom camera

Sensor: 1/1.7" CMOS, 20MP
Objective :
DFOV : 66.6°-4°
Focal length: 6.83-119.94mm (equivalent: 31.7-556.2mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m at ∞ (wide angle), 8 m at ∞ (telephoto)

Mode de mise au point : MF/AF-C/AF-S
Exposure Mode: Auto, Manual
Exposure compensation: ±3.0 (1/3 steps)
Metering Mode: Spot Metering, Center Weighted Metering
EXPOSURE LOCK: Supported
Electronic Shutter Speed: 1~1/8000s

ISO range:
Video: 100 - 25600
Photo : 100 - 25600

Video resolution: 3840x2160@30fps, 1920x1080@30fps
Video format: MP4
Video subtitles: Supported
Photo size: 5184 × 3888
Photo format: JPEG

wide camera

Sensor: 1/2.3" CMOS, 12MP

Objective :
DFOV : 82,9
Focal length: 4.5mm (equivalent: 24mm)
Aperture: f/2.8
Focus: 1m to ∞

Mode d'exposition : Auto
Exposure compensation: ±3.0 (in 1/3 increments)
Metering Mode: Spot Metering, Center Weighted Metering
EXPOSURE LOCK: Supported
Shutter Speed: 1~1/8000

ISO range:
Video: 100 - 25600
Photo : 100 - 25600

Video resolution: 1920×1080@30fps
Video format: MP4
Video Subtitles: Supported
Photo size: 4056 x 3040
Photo format: JPEG

Thermal camera (Zenmuse H20T)

Sensor: Uncooled VOx Microbolometer

Objective
DFOV : 40.6°
Focal length: 13.5mm (equivalent: 58mm)
Aperture: f/1.0
Focus: 5 m at ∞

Digital Zoom: 1x, 2x, 4x, 8x
Video resolution: 640×512 @ 30Hz
Video format: MP4
Image resolution: 640×512
Format de l'image : R-JPEG (16 bits)
Pixel Pitch (Piercing): 12μm
Spectral band: 8-14μm
Sensitivity (NETD): ≤50mK @ f/1.0
Temperature measurement method: Spot meter, area measurement

Temperature range :
-40°C to 150°C (high gain)
-40°C to 550°C (low gain)

Temperature Alert: Supported
FFC : Auto/manual
Palette: Hot White/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser rangefinder

Wavelength: 905nm
Measurement range: 3-1200m (up to a vertical surface of ≥12m in diameter and a reflection rate of 20%)
Measurement accuracy:
± (0,2 m + D×0,15%)
(D is the distance to a vertical surface)

Features

Hybrid optical zoom: 23×（DFOV：4°，EQV：556.2mm）
Max. Zoom : 200×（DFOV：0.5°，EQV：4800mm）
One-Click Capture: One click to record video or image from 3 cameras (zoom, wide and thermal camera) simultaneously.
Point to Aim: Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest.
High-resolution grid photo: Frame an area of interest in the wide camera view, and the zoom camera will automatically capture a set of 20MP images of the area. These images are stored together with an overview image that can be viewed in more detail.
Night Scene: Support (zoom camera)
Timestamp: Including GPS, date and time

Storage

Supported SD card: MicroSD card (maximum capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported file systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)

Micro SD cards recommended

• TOSHIBA EXCERIA PRO 32GB micro SD HC II
• SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
• TOSHIBA EXCERIA PRO 64 Go micro SD XC II
• SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
• SAMSUNG_EVO_128GB_micro SD 3 XC I
• TOSHIBA EXCERIA M303E 32GB micro SD HC I
• TOSHIBA EXCERIA M303E 64GB micro SD XC I
• TOSHIBA EXCERIA M303E 64GB micro SD XC I
• TOSHIBA EXCERIA M303E 128GB micro SD XC I
• SAMSUNG_EVO_64GB_micro SD 3 XC I

1X Zenmuse H20T

Depending on the combo chosen, other products may be added.
