A new generation of commercial drones

Considerable flight performance

Balance of power and portability delivers even more operational efficiency

41 min: Max flight time1

12 m/s: Wind resistance

7000 m: Operating altitude

25 m/s: Maximum speed

Adaptability to the environment

With IP55 protection, the M30 Series can fly in adverse weather and temperatures between -20 and 50°C.

Safe and reliable

Dual optical sensors and ToF sensors are present on all six sides of the device, ensuring device and mission security. The built-in ADS-B receiver sends timely alerts when a manned aircraft is nearby.

Redundancy and backup systems

Advanced redundancy systems ensure the continuity of your critical missions even during unforeseen situations.

Improved transmission

Four integrated antennas support OcuSync 3 Enterprise, enabling triple-channel 1080p video transmission and switching between streams, even in complex environments.

Strengthen your connection with the DJI3 Cellular Module, an optional 4G dongle that supports video transmission in complex remote working environments.

Lightness and portability

Compact and foldable, the M30 range is easy to store, transport and deploy.

Capture everything

The M30 range has wide-angle, zoom and thermal cameras (M30 only) as well as a laser rangefinder, allowing you to capture all the aerial data you need, when you need it.

Wide angle camera

• Equivalent focal length: 24mm
• DFOV: 84°
• 12MP 1/2'' CMOS sensor
• Video resolution: 4K/30fps
• Equivalent focal length: 24mm
• DFOV: 84°
• 12MP 1/2'' CMOS sensor
• Video resolution: 4K/30fps

Camera with zoom

• 48MP 1/2'' CMOS sensor
• 5x-16x optical zoom
• Hybrid zoom 200x max.
• Photo resolution: 8K
• Video resolution: 4K/30fps
• 48MP 1/2'' CMOS sensor
• 5x-16x optical zoom
• Hybrid zoom 200x max.
• Photo resolution: 8K
• Video resolution: 4K/30fps

Thermal imaging camera

• Equivalent focal length: 40mm
• Resolution: 640x512
• Refresh rate: 30fps
• Temperature measurement accuracy: ±2°C or ±2%4
• Equivalent focal length: 40mm
• Resolution: 640x512
• Refresh rate: 30fps
• Temperature measurement accuracy: ±2°C or ±2%

Laser rangefinder

• Range: 3m to 1200m
• Accuracy: ±(0.2m+D×0.15%)5
• Range: 3m to 1200m
• Accuracy: ±(0.2m+D×0.15%)5

Superior image quality

• Night flight
• Smart low-light photo
• RGB
• Infrared
• Laser rangefinder

Thanks to the FPV camera optimized for low-light conditions, the ground and horizon are clearly visible even at night, providing you with safety and assurance.

A revolutionary flight control experience

Designed for commercial drone pilots

The DJI RC Plus 7-inch Widescreen Remote Controller is tailor-made for Enterprise users.

Adaptability to the Enterprise environment

IP54 protection

• Waterproof and dustproof

From -20 to 50°C

• Operational in hot and cold weather

Improved stability and battery life

OcuSync 3 Enterprise with four antennas

Cover a larger area with stable video transmission and two detachable antennas.
Cover a larger area with stable video transmission and two detachable antennas.

DJI3 Cellular Module

Install a DJI Cellular Module for 4G support to complement OcuSync 3 Enterprise.
Install a DJI Cellular Module for 4G support to complement OcuSync 3 Enterprise.

Extended battery life

The dual battery configuration provides 6 hours of battery life and allows hot-swapping for smooth, uninterrupted flight operations.
The dual battery configuration provides 6 hours of battery life and allows hot-swapping for smooth, uninterrupted flight operations.

Introducing the all-new DJI Pilot 2

The Enterprise flight interface has been redesigned to improve piloting efficiency and flight safety.

A redesigned user interface

The drone and gimbal controls are easily accessible with just one click. Clear presentation of flight details and navigation information improves user experience and flight efficiency.

Ergonomic design for greater safety and efficiency

DJI Pilot 2 works in harmony with DJI RC Plus. Side and customizable buttons are all accessible and allow quick actions, such as adjusting camera views and positioning PinPoints.

Flight safety

Pre-flight checklist

A comprehensive checklist lets you quickly confirm aircraft status and configure settings, so you can take off with confidence.

Navigation screen

An optimized interface displays your starting point, PinPoints as well as nearby obstacles, providing greater safety and complete situational awareness.

Alert notifications

Track timely alerts of changing conditions and scenarios.

DJI FlightHub 2

Ground/cloud synergy

Master your mission environment

DJI FlightHub 2 features a 2.5D Reference Map for quick terrain awareness, One-Click Panorama Sync for a quick overview of the site, and Cloud Mapping for fast RGB and IR mapping.

Live broadcast of the mission

Simultaneously connect multiple users to one or more drone operations. The teams receive the latest information through high resolution live broadcast with low latency.

Live annotations

Highlight objects or areas of interest for more efficient missions and better distribution of resources. Annotations are visible to ground crews, pilots or any other team member and thus facilitate project alignment and task distribution.

Smooth communication with the team

Sync important information like team location, drone status, mission details and more, in real-time and across devices, making teamwork easier than ever.

Advanced intelligence

Trajectory planning and management

Flight trajectories and missions planned in DJI FlightHub 2 can be easily synchronized with DJI Pilot 2. Operations data is automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

Smart inspection

The Live Mission Recording function has been improved and now offers an optimized user interface, convenient task recording and target point marking, saving 90% of operation steps. Gimbal and photo angle settings can be adjusted between each Waypoint, improving flight and mission efficiency.

DJI Dock, for roads less traveled

Continuous operations

• DJI DOCK (M30 range M30 version Dock6) has emblematic performance with a maximum operation range of 7 km7, resistance to IP55 weather conditions and at temperatures between -35 and 50 ° C8.

Fast charging for efficient operations

• Recharge and take off quickly with TEC air conditioning that cools the drone's batteries and allows a 10-90% recharge in just 25 minutes.9

Cloud platform management

• With DJI FlightHub 2, unlock all the features of DJI Dock from the cloud. Schedule missions, create and edit flight paths, and manage collected data.

A private deployment

• The DJI Cloud API opens DJI Dock functionality to developers and system integrators to configure a custom private server.

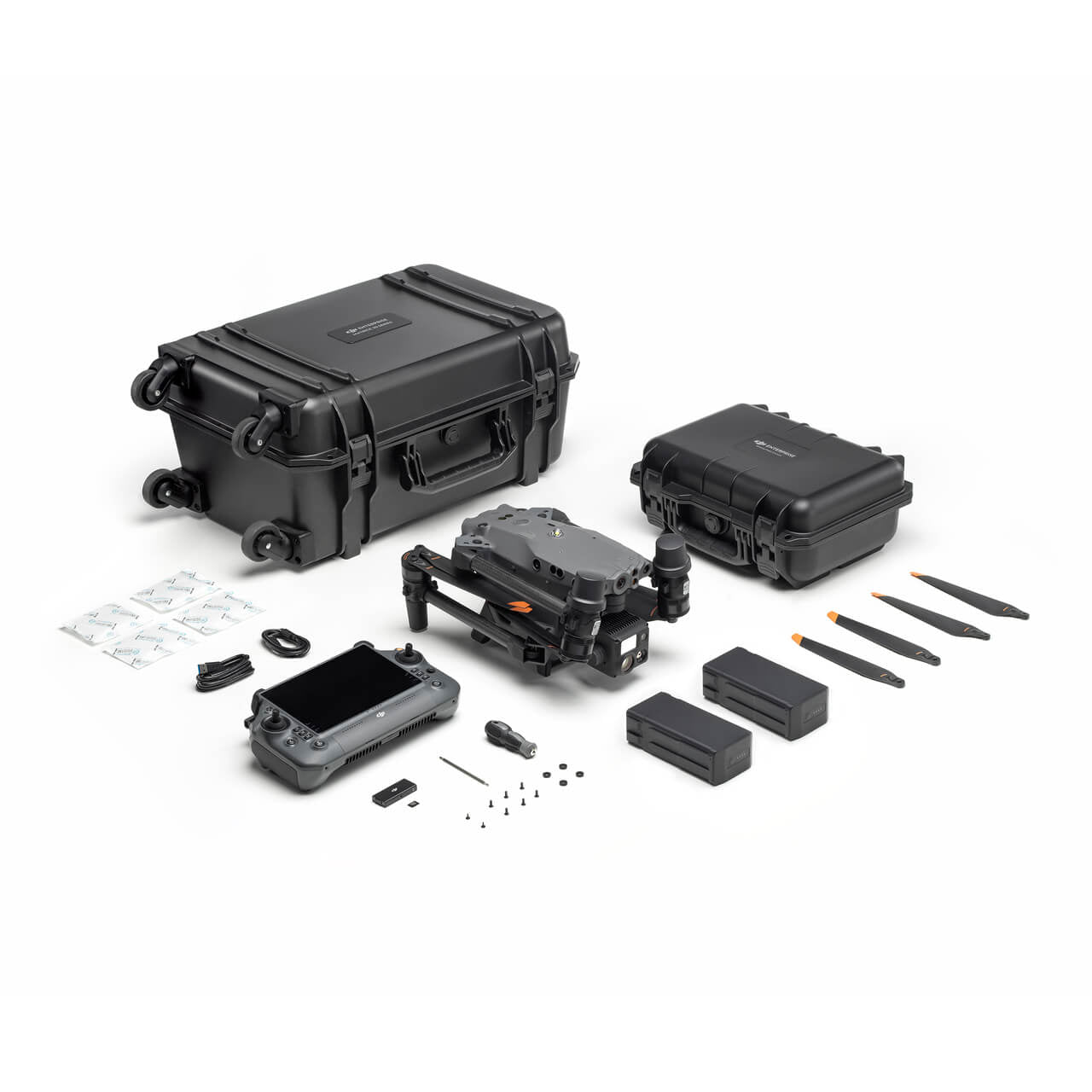

Basic package

The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, a BS30 Intelligent Battery Station and the device storage case.

TB30 Intelligent Flight Battery

Each battery has a self-heating function, ideal for cold environments, as well as hot change for quick exchanges and has a useful life of 400 cycles10 for increased operational efficiency.

DJI3 Cellular Module

Provides 4G transmission between the drone and the remote control, as well as an internet connection for the remote control.

Technical characteristics

Device

• Dimensions (unfolded, without propellers)

• 470 x 585 x 215 mm (L x W x H)

• Dimensions (folded)

• 365 x 215 x 195 mm (L x W x H)

• Diagonal wheelbase

• 668mm

• Weight (with two batteries)

• 3770 ± 10g

• Maximum takeoff weight

• 4,069g

• Max weight on takeoff for C2 certification in the EU

• 3,998g

• Operating frequency[1]

• 2.4000 - 2.4835 GHz, 5.725 - 5.850 GHz

• Transmitter power (EIRP)

• 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

• Hover accuracy (with or without wind)

• Vertical: ±0.1m (optical system enabled); ±0.5m (N mode with GPS); ±0.1m (RTK) Horizontal: ±0.3m (optical system enabled); ±1.5m (N mode with GPS); ±0.1m (RTK)

• RTK positioning accuracy (fixed RTK enabled)

• 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical)

• Max angular speed

• Tilt: 150°/sec. ; Yaw: 100°/sec.

• Max tilt angle

• 35° (if N mode and front optical system are activated: 25°)

• Max speed ascent/descent

• 6m/s, 5m/s

• Max descent speed (tilt)

• 7 m/s

• Maximum horizontal speed

• 23 m/s

• Practical ceiling (without other payload)

• 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers)

• Max. wind resistance

• 12 m/s

• Max hover time[2]

• 36 mins

• Max flight time[2]

• 41 mins

• Engine model

• 3511

• Propeller model

• 1676 1676 high altitude (not included)

• Protection index[3]

• IP55

• GNSS

• GPS+Galileo+BeiDou+GLONASS (GLONASS is only supported when RTK module is enabled)

• Operating Temperatures

• -20 to 50°C (-4 to 122°F)

Carrycot

• Angular vibration range

• ±0.01°

• Adjustable range

• Pan: ±90° Tilt: -120° to +45°

• Mechanical amplitude

• Pan: ±105° Roll: -135° to +60° Tilt: ±45°

Camera with zoom

• Sensor

• 1/2" CMOS, Effective Pixels: 48M

• Objective

• Focal length: 21-75mm (equivalent: 113-405mm) Aperture: f/2.8 to f/4.2 Focus: 5m to ∞

Wide angle camera

• Sensor

• 1/2" CMOS, Effective Pixels: 12M

• Objective

• DFOV: 84° Focal length: 4.5mm (equivalent: approx. 24mm) Aperture: f/2.8 Focus: 1m to ∞

Thermal camera

• Thermal image

• Uncooled microbolometric sensor

• Objective

• DFOV: 61° Focal length: 9.1mm (equivalent: approx. 40mm) Aperture: f/1.0 Focus: 5m to ∞

• Sensitivity

• ≤30mk at F1.1

• Accuracy of infrared temperature measurement[4]

• ±2°C or ±2% (whichever is greater)

FPV Camera

• Definition

• 1920x1080

• DFOV

• 161°

• Refresh rate

• 30fps

Laser module

• Wave length

• 905nm

• Maximum laser power

• 3.5mW

• Single pulse width

• 6 ns

• Measuring accuracy

• ± (0.2 m + Dx0.15%), D is the distance for a vertical surface

• Measuring range

• 3 to 1200 m (0.5 x 12 m vertical area with 20% reflectivity)

Optical systems

• Obstacle detection range

• Front: 0.6 to 38 m Top/bottom/back/side: 0.5 to 33 m

• Field of view

• 65° (H), 50° (T)

• Terms of use

• Regular, well-lit surfaces (>15 lux)

Infrared detection systems

• Obstacle detection range

• 0.1 to 10m

• Field of view

• 30°

• Terms of use

• Large, diffuse or light-reflecting obstacles (reflexivity > 10%)

TB30 Intelligent Flight Battery

• Ability

• 5880mAh

• Tension

• 26.1V

• Battery Type

• 6S LiPo

• Energy

• 131.6Wh

• Net weight

• Approximately 685g

• Operating Temperatures

• -20 to 50°C (-4 to 122°F)

• Storage temperature

• 20 to 30°C (68 to 86°F)

• Charging temperature

• -20 to 40°C (-4 to 104°F) (When the temperature is below 10°C, the self-heating function is activated automatically. Charging at low temperatures may shorten battery life)

• Chemical system

• LiNiMnCoO2

Auxiliary lights

• Effective lighting distance

• 5m

• Type of lighting

• 60 Hz, steady illumination

Radio control

• Screen

• 7.02-inch touchscreen LCD with 1920 x 1200 pixel resolution and 1200 cd/m brightness[2]

• Internal battery

• Type: Li-ion (6500 mAh at 7.2 V) Charging Type: Supports a USB-C battery station or charger rated max. is 65W (max voltage 20V) Cooldown: 2 hours Chemical system: LiNiCoAIO2

• External battery (WB37 Smart Battery)

• Capacity: 4920mAh Voltage: 7.6V Battery type: Li-ion Energy: 37.39 Wh Chemical system: LiCoO2

• Operating time[5]

• Internal battery: Approximately 3 hours and 18 minutes Internal battery + External battery: About 6 hours

• Protection index[3]

• IP54

• GNSS

• GPS + Galileo + BeiDou

• Operating Temperatures

• -20 to 50°C (-4 to 122°F)

O3 Enterprise

• Operating frequency[1]

• 2.4000 - 2.4835 GHz, 5.725 - 5.850 GHz

• Max transmission distance (without obstacles or interference)

• 15km (FCC); 8 km (CE/SRRC/MIC)

• Max transmission distance (with interference)

• Strong interference (cityscapes, limited view, multiple different signals): 1.5 to 3 km (FCC/CE/SRRC/MIC) Average interference (suburban landscapes, open fields of view, multiple signals): 3 to 9 km (FCC); 3 to 6 km (CE/SRRC/ MIC) Low interference (open landscape with free field of view, few signals): 9 to 15 km (FCC); 6 to 8 km (CE/SRRC/MIC)

• Transmitter power (EIRP)

• 2.4GHz: <33dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8GHz: <33dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wireless

• Protocol

• Wi-Fi 6

• Operating frequency[1]

• 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.725 - 5.850 GHz

• Transmitter power (EIRP)

• 2.4GHz: <26dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.1

• Operating frequencies

• 2.4000 - 2.4835 GHz

• Transmitter power (EIRP)

• <10dBm

BS30 Smart Battery Station

• Dimensions

• 353 x 267 x 148mm

• Net weight

• 3.95kg

• Compatible battery type

• TB30 Intelligent Flight Battery WB37 Smart Battery

• Entrance

• 100-240V, 50/60Hz

• Exit

• Battery Port TB30 26.1V, 8.9A (Supported up to two outputs simultaneously) WB37 Smart Battery: 8.7V, 6A

• Output power

• 525W

• USB-C port

• Maximum output power of 65W

• USB-A port

• Maximum output power of 10W (5V, 2A)

• Power consumption (when the battery is not recharged)

• <8W

• Output power (when preheating the battery)

• Approx. 30W

• Operating Temperatures

• -20 to 40°C (-4 to 104°F)

• Protection index[3]

• IP55 (with lid properly closed)

• Cooldown[6]

• Approximately 30 minutes (recharging two TB30 batteries from 20 to 90%) Approximately 50 minutes (charging two TB30 batteries from 0 to 100%)

• Protective features

• Backflow protection Short circuit protection Protection against overvoltage Overcurrent protection Temperature protection

• Device body×1

• DJI RC Plus × 1

• Propellers 1671 (CW) × 1

• Propellers 1671 (CCW)×1

• USB-C cable×1

• USB-C to USB-C cable×1

• Carrying case×1

• Screws and tools×1

• BS30×1 battery station

• Battery TB30×2
