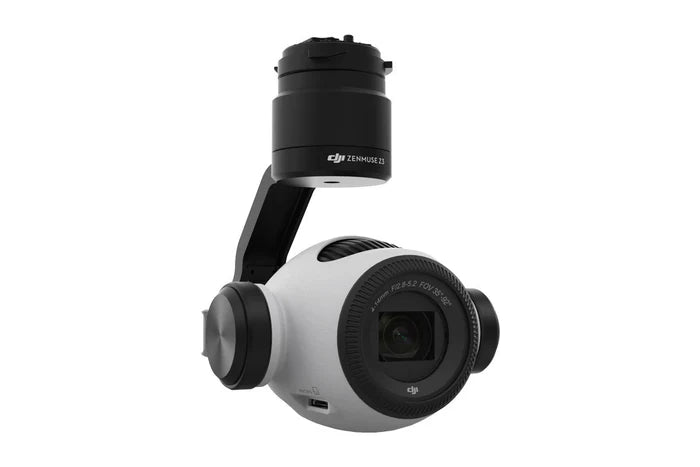

ENSEMBLE DX | DJI Zenmuse Z3
The Zenmuse Z3 gimbal and camera is equipped with an optical zoom lens. It offers 3.5x optical zoom combined with 2x digital zoom. Its Type 1/2.3 CMOS sensor supports 4K video recording and 12 MP photo capture.
The ability to zoom in flight opens up new perspectives to optimize and enrich the use of drones in industrial and commercial fields, such as the inspection of power lines or search and rescue operations. It also gives aerial photographers increased control over the composition of their shots.
📩 For availability, contact the store at boutique@dronexperts.com.
PAY YOUR PURCHASE IN SEVERAL INSTALLMENTS WITH
Option available at checkout.
Terms and operation
The DJI Zenmuse Z3 is an integrated aerial camera based on DJI's class-leading Zenmuse X3 and optimized for photography. A 7x zoom, consisting of a 3.5x optical zoom and a 2x lossless digital zoom, provides a focal range of 22mm to 77mm, making it ideal for industrial applications.
Dimensions : 105×115×85 mm ¸
Poids : 262 g
Camera
- Capteur : CMOS, 1/2.3"
- Nombre de pixels max : 12,76 millions
- Effective pixels: 12.4 million
Lens
- Optical zoom: 3.5×, equivalent to 22 - 77 mm
- Aperture: F2.8 (Wide angle) - F5.2 (Telephoto)
- Field of view: 92° (Wide angle) - 35° (Telephoto)
Photo resolution
- 4:3
- Large : 12 MP, 4000x3000
- 16:9
- Large : 9 MP, 4000x2250
Video resolution
- 4096x2160 p24/25
- 3840x2160 p24/25/30
- 1920x1080 p24/25/30/48/50/60
- 1280x720 p24/25/30/48/50/60
Formats photo
- JPEG, DNG, JPEG+DNG
Video formats
- MOV, MP4
Video repair function
- Support
Operating modes
- Capture, Record, Playback
Modes d'images fixes
- Single shot
- Burst: 3/5/7 shots
- Auto Exposure Bracketing (AEB): 3/5 shots bracketed at 0.7 EV
- Timelapse
Exhibition mode
- Auto, Manual, Shutter
Exposure correction
- ±3,0 (augmentation 1/3)
Measuring mode
- Focal metering, Average metering, Spot metering (12x8 area option)
Exposure Lock
- Support
Electronic shutter speed
- 8 - 1/8000s
White balance
- Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K - 10000K)
ISO ranges
- 100 - 3200 (Video)
- 100 - 1600 (Photo)
Subtitles
- Support
Anti-flicker
- Auto, 50Hz, 60Hz
PAL/NTSC
- Support
Supported SD Cards
- MicroSD (SD/SDHC/SDXC)
- FAT32/exFAT
Port USB
- USB 2.0 Host/Device
Nacelle
- Angular momentum angle: ±0.03°
- Support: Detachable
- Adjustable range:
- Horizontal tilt: from +30° to -90°
- Vertical tilt: ±320°
- Roulis : ±15°
- Mechanical amplitude:
- Horizontal tilt: from +50° to -140°
- Vertical tilt: ±330°
- Roll: from +90° to -50°
- Maximum adjustable speed: 120°/s
Environmental
- Operating temperature: From -10 to 40°C
- Non-operating temperature: From -10 to 60°C

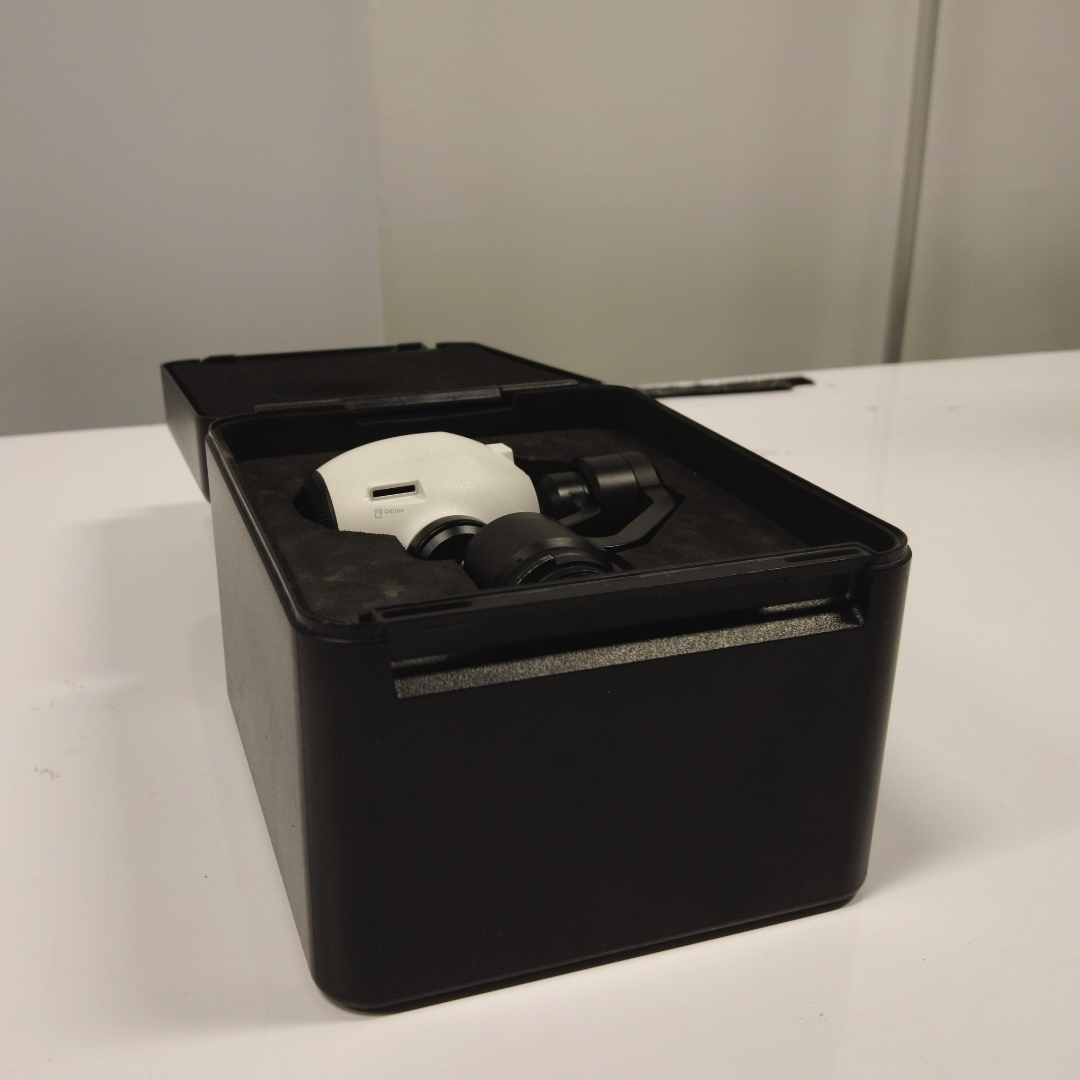

DJI Zenmuse Z3 x1
