ENSEMBLE DX | DJI Zenmuse X3

DJI's Osmo system combines the Zenmuse X3 camera/stabilizer with a detachable handle, delivering the benefits of stabilized 4K video capture in a portable format. Equipped with a 1/2.3″ CMOS sensor, the camera allows video recording up to DCI 4K (4096 x 2160) resolution at 24 or 25 frames per second, as well as 12 MP still photos. . Essential camera and stabilizer controls, like the joystick for manual pan and tilt, are built right into the grip.

For a more advanced experience and live visual feedback, the system offers Wi-Fi, allowing the Osmo to be linked to a mobile device via the DJI GO app, available on iOS and Android. The included smartphone holder turns your phone into a built-in monitor. Thanks to a Wi-Fi range of up to 25 meters (85 feet), it is also possible to control the camera and stabilizer remotely, offering great flexibility of use.

Sensor

• Dimensions : 6,17 x 4,55 mm
• Type : CMOS
• Effective pixels: 12.4 million
• Plage ISO : 100~3200

Pixels maximum

• Maximum resolution: 12.4 million pixels
• Burst: Full resolution, 7 frames per second
• Shutter speed: 8 to 1/8000 s
• EV Range: -3 to +3, in 1/3 increments
• AEB (Auto Exposure Bracketing): Supported
• Interval : Price en charge
• Timelapse: Supported (options: 5, 7, 10, 20 or 30 seconds)
• Format DNG : Price en charge

Divers

• Exposition : P / S / M
• AE metering: Automatic / Spot
• AE Lock: Supported
• White balance: Automatic / Preset / Manual
• Focus Modes: Focus to infinity
• Autofocus (AF): Not applicable
• AF Lock: Not applicable
• Highlighted focus: Not applicable
• Zebra : Price en charge
• Custom Settings: Supported
• Style : sRGB, Look colorés, LOG
• Image enhancement: HDR
• Integrated software: Not applicable

Objective

• Optical: 20mm (35mm equivalent) f/2.8 with focus to infinity
• Iris : f/2.8
• Diagonal du champ de vision : 94°
• Equivalent focal length: 20 mm
• Distorsion : 0,90 >#/li###
• Update Range: Infinite
• Autofocus: Not applicable

Video

• Supported resolutions:
  • 4096x2160 (25/24p)
  • 3840x2160 (30/25p)
  • 1920x1080 (60/50/48/30/25/24p)
  • 1280x720 (60/50/48/30/25/24p)
• Encodage : MPEG4 / AVC / H.264
• Maximum bit rate:
  • 60 Mb/s @ 4096x2160 (25/24p)
  • 60 Mb/s @ 3840x2160 (30/25p)
  • 45 Mb/s @ 1920x1080 (60/50/48/30/25/24p)
  • 15 Mb/s @ 1280x720 (60/50/48/30/25/24p)
• File format: MP4 / MOV
• Storage: Class 10 microSD card
• Video Noise Reduction (NR): Supported
• Image Stabilizer: Supported

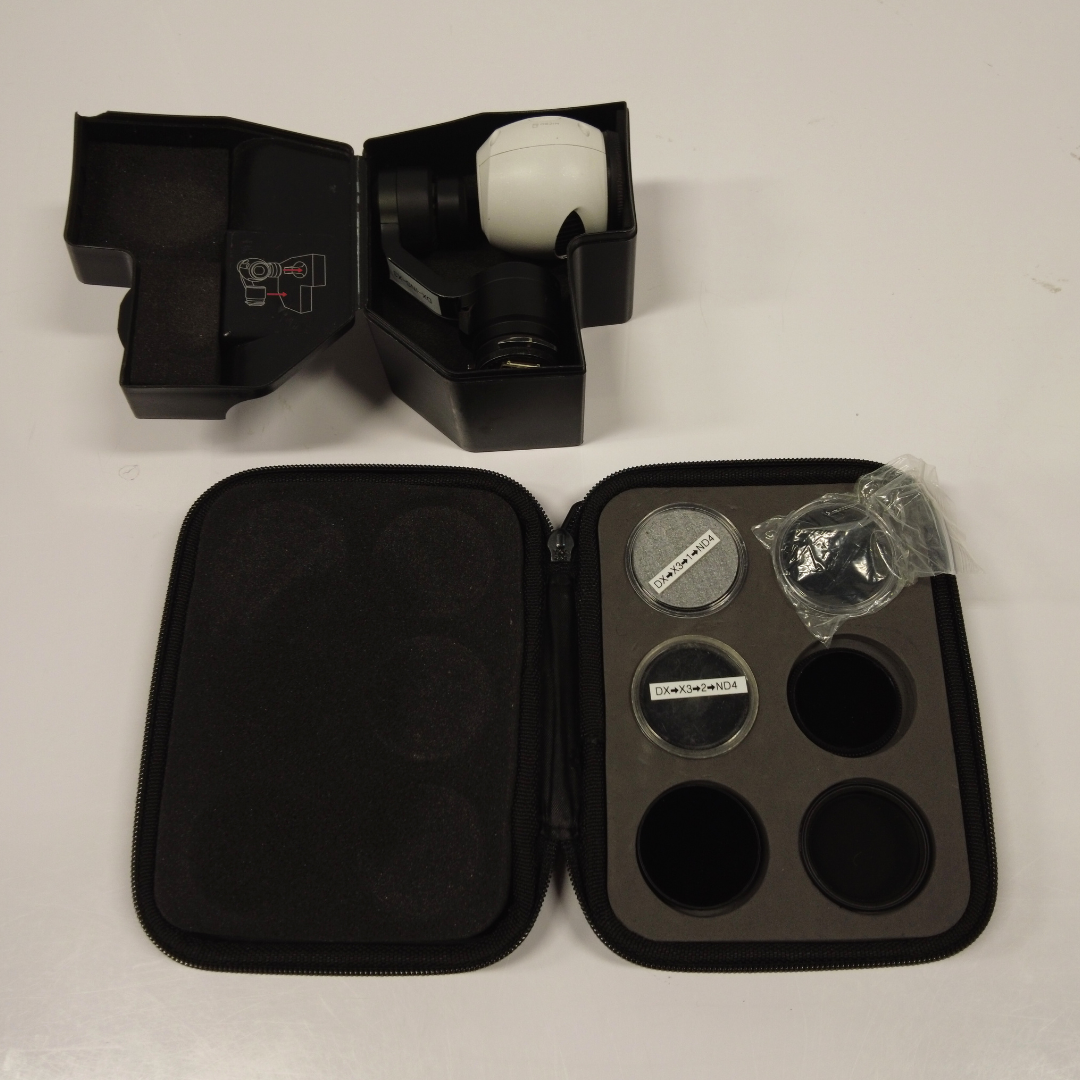

1 DJI Zenmuse X3 X 1

ND4 X 6 filters
