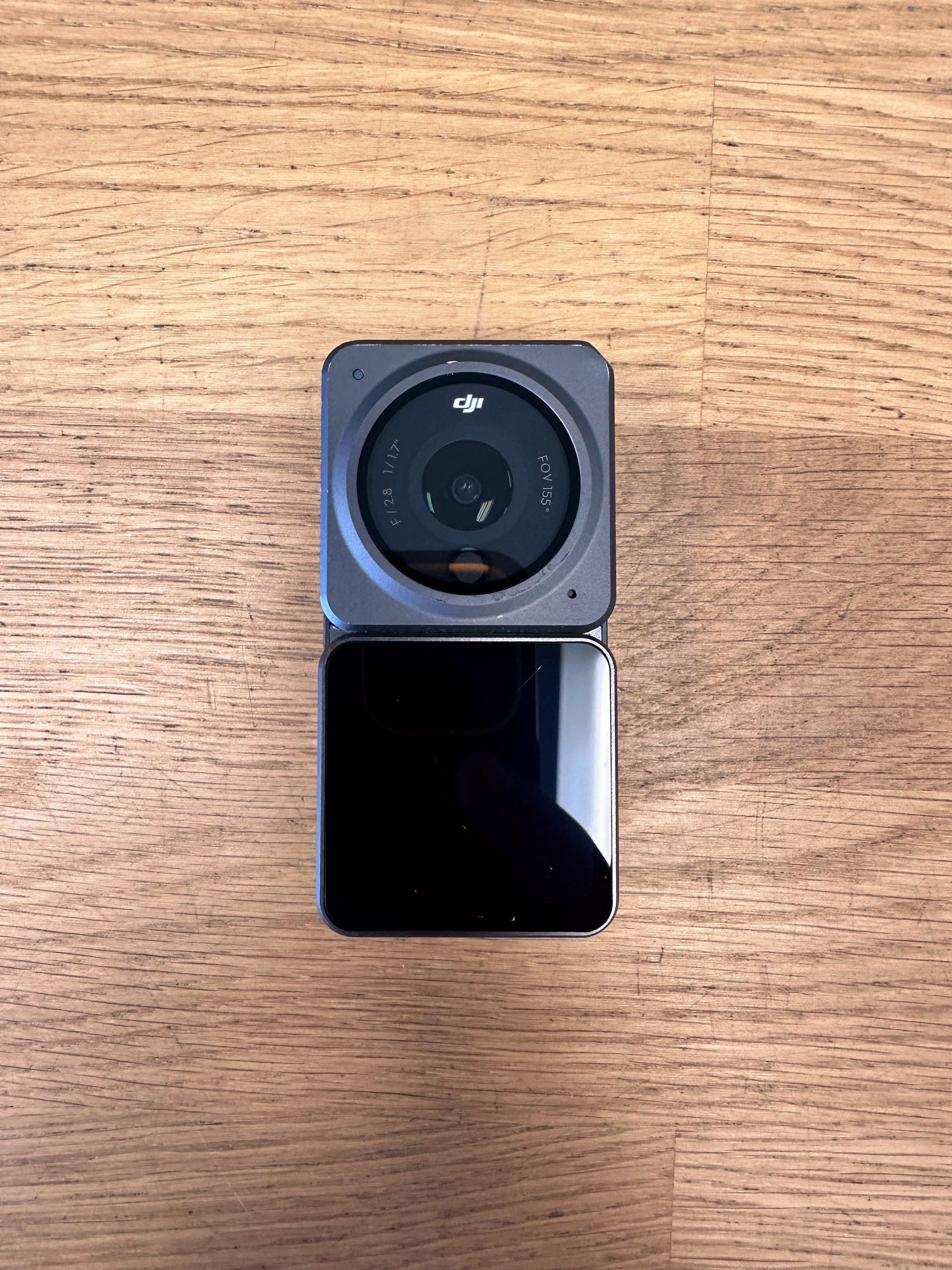

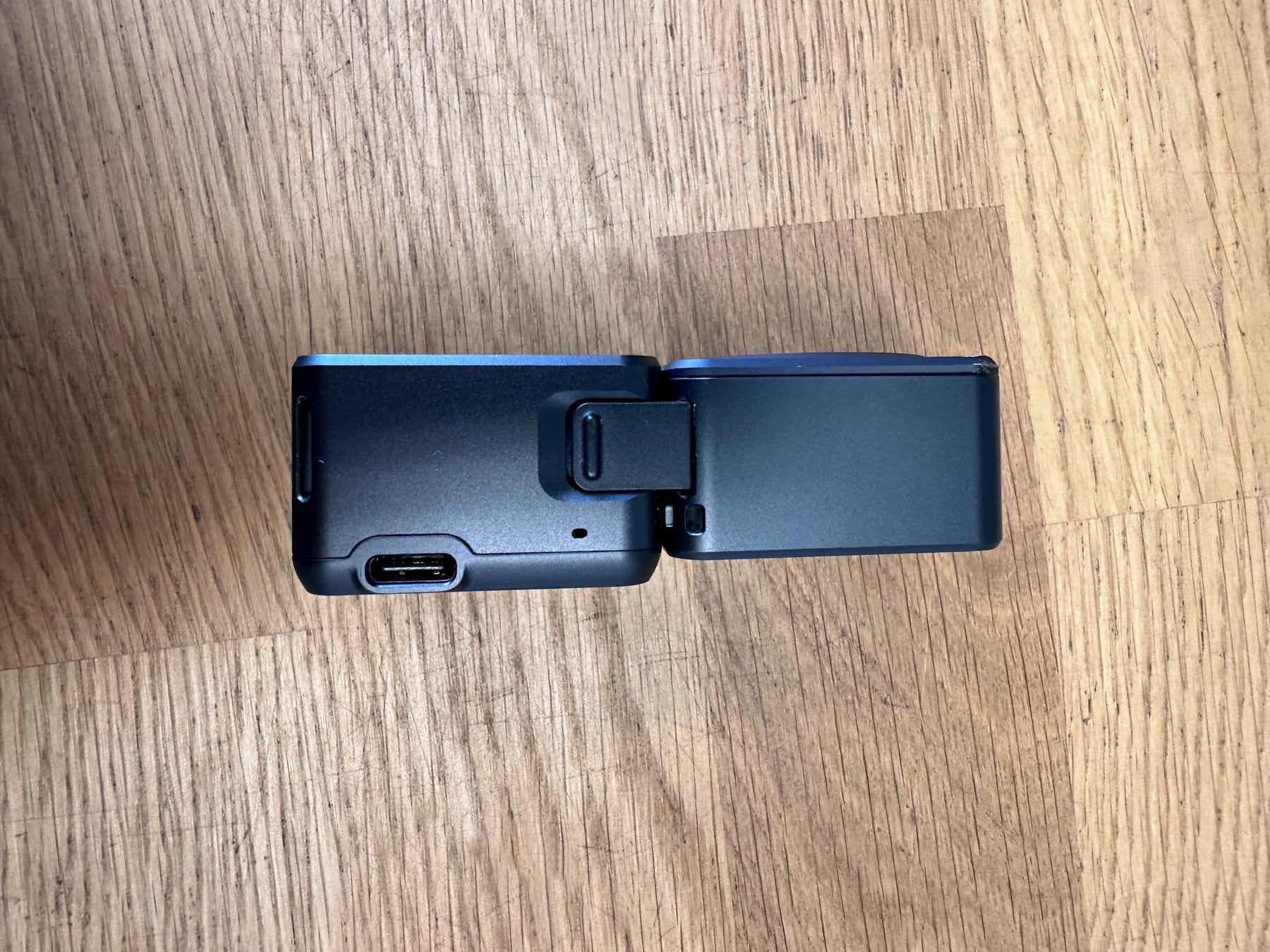

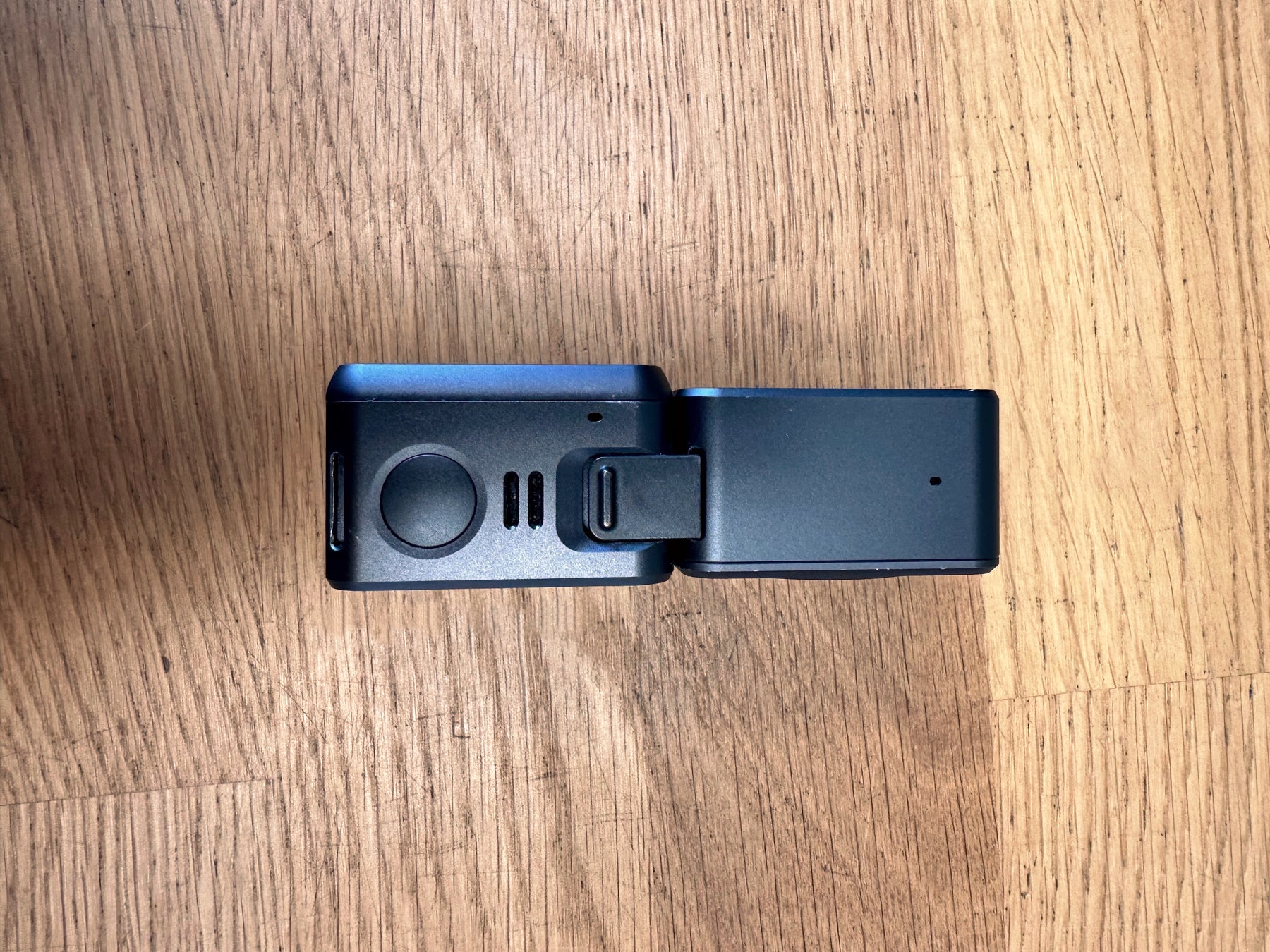

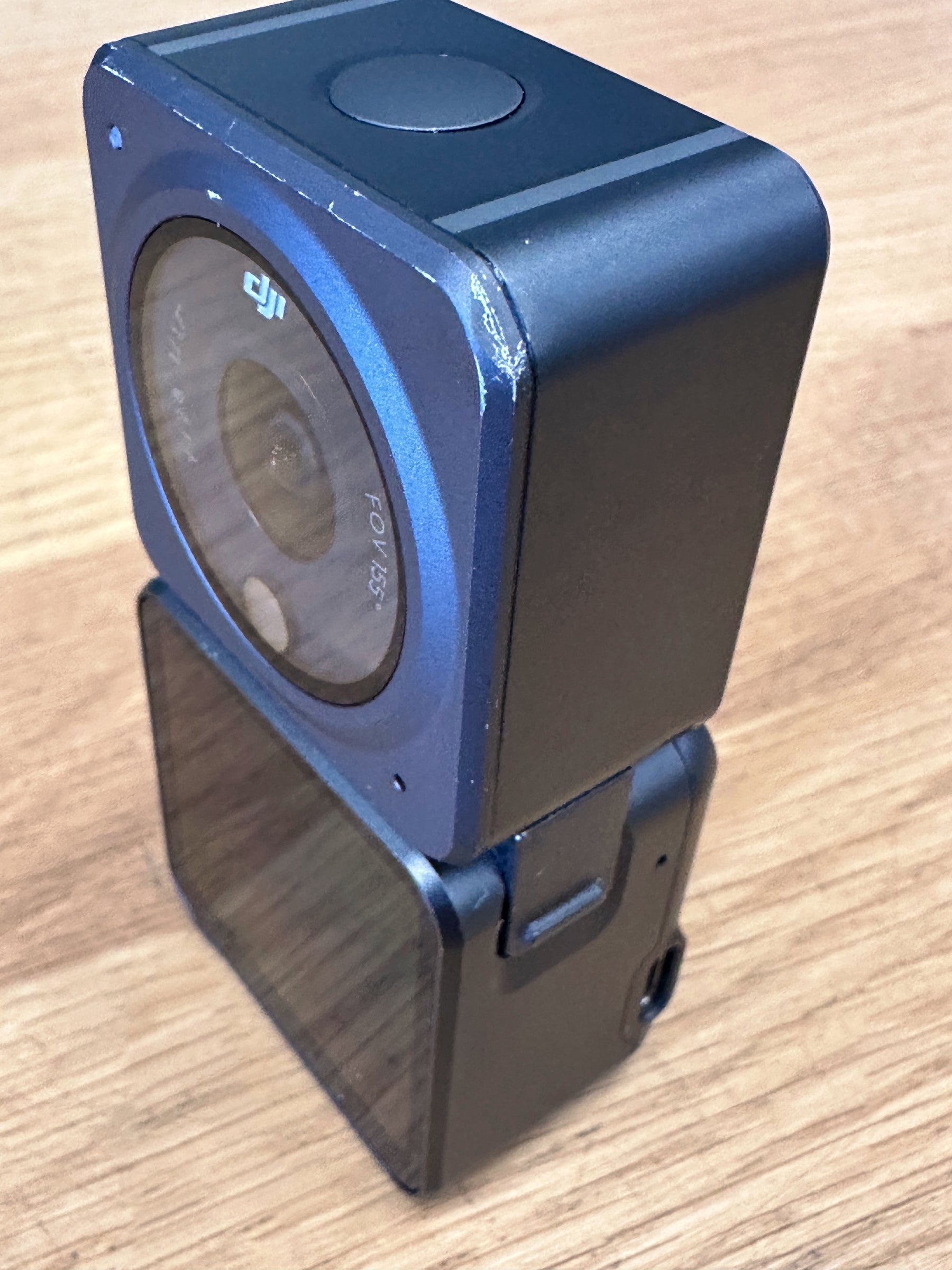

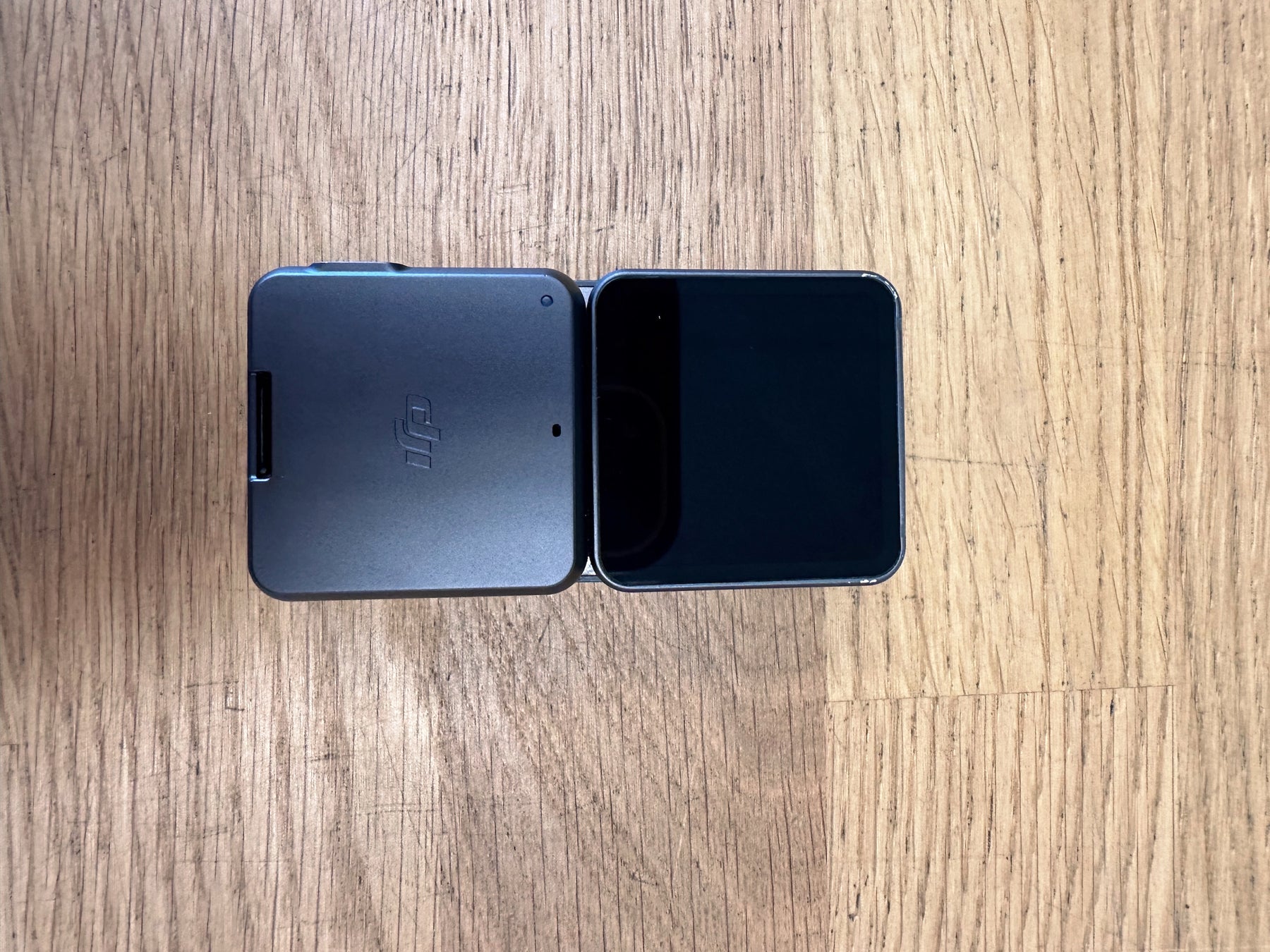

DX Osmo Action 2 - USED

Improved stabilization

No matter how intense the action, DJI's latest stabilization technologies, RockSteady 2.0 and HorizonSteady, detect and correct for camera shake and rotation in real time.

Built for action and more

The magnetic design allows you to freely switch between powerful modules and accessories. From everyday life to the extreme, Action 2 has you covered.

Peak performance

DJI Action 2 records 4K/120fps video and offers an ultra-wide 155° field of view. Capture more of your surroundings with smooth, detailed images.

A sturdy companion

Robustly built, the DJI Action 2 camera unit is drop, dust and water resistant up to 10 meters deep.

Camera Unit

General

• Dimensions

• 39×39×22.3mm

• Waterproof

• 10 m without Waterproof Case, 60 m with Waterproof Case

• Number of Microphones

• 1

• Weight

• 56g

• Touchscreen

• 1.76 inches 350 ppi
  500±50 cd/m² 446×424

Camera

• Sensor

• 1/1.7” CMOS

• Lens

• FOV: 155°
  Aperture: f/2.8
  35mm Equivalent format: 12.7 mm
  Focus Range: 0.3 m to ∞

• ISO Range

• Photo: 100-6400
  Video: 100-6400

• Electronic Shutter Speed

• Photo: 1/8000-30s
  Video: 1/8000 s to the limit of frames per second

• Max Photo Resolution

• 4000×3000

• Zoom

• Digital Zoom
  Photo: 4x
  Video: 2x (> 60fps), 3x (≤ 60fps, HorizonSteady On), 4x (≤ 60fps, HorizonSteady Off)
  Slow Motion/Timelapse: Not available

• Still Photography Modes

• Single: 12 MP
  Countdown: Off/0.5/1/2/3/5/10 seconds

• Video

• 4K (4:3): 4096×3072 @ 24/25/30/48/50/60fps
  4K (16:9): 3840×2160 @ 100/120fps
  4K (16:9): 3840×2160 @ 24/25/30/48/50/60fps
  2.7K (4:3): 2688×2016 @ 24/25/30/48/50/60fps
  2.7K (16:9): 2688×1512 @ 100/120fps
  2.7K (16:9): 2688×1512 @ 24/25/30/48/50/60fps
  1080p (16:9): 1920×1080 @ 100/120/200/240fps
  1080p (16:9): 1920×1080 @ 24/25/30/48/50/60fps

• Slow motion

• 4K: 4x (120fps)
  2.7K: 4x (120fps)
  1080p: 8x (240fps), 4x (120fps)

• Timelapse

• 4K/2.7K/1080p
  Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 seconds
  Duration: 5/10/20/30 minutes, 1/2/3/5 hours, ∞

• Stabilization

• EIS: RockSteady 2.0+HorizonSteady
  *EIS is not supported in Slow Motion and Timelapse mode. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9)

• Max Video Bitrate

• 130 Mbps

• Supported File Formats

• exFAT

• Photo Format

• JPEG/RAW

• Video Formats

• MP4 (H.264/HEVC)

• Built-in Storage Capacity

• 32GB
  * 22.4GB of available storage. The Camera Unit doesn't have a microSD card slot, but storage capacity can be expanded by inserting a microSD card into the Front Touchscreen Module or Power Module.

• Audio Output

• 48KHz; AAFC

Battery

• Kind

• 1S LiPo

• Capacity

• 580mAh

• Energy

• 2.23 Wh

• Voltage

• 3.85V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• 70 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

Connection

• Wi-Fi Operation Frequency Range

• 2.400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• WiFi Protocol

• 802.11 a/b/g/n/ac

• Wi-Fi Transmit Power (EIRP)

• 2.4 GHz: <16 dBm (FCC/CE/SRRC/MIC)
  5.1 GHz: <14 dBm (FCC/CE/SRRC/MIC)
  5.8 GHz: <14 dBm (FCC/CE/SRRC)

• Bluetooth Operation Frequency Range

• 2.400-2.4835 GHz

• Bluetooth Transmit Power (EIRP)

• <4dBm

• Bluetooth Protocol

• BLE 5.0

Front Touchscreen Module

General

• Dimensions

• 39×41.6×24.6mm

• Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

• Number of Microphones

• 3

• Weight

• 64g

• Touchscreen

• 1.76 inches 350 ppi
  500±50 cd/m² 446×424

• Supported SD Cards

• microSD (Max. 256GB)

• Recommended microSD Cards

• Recommended models:
  Samsung EVO 128GB UHS-I Speed Grade 3 microSDHC
  Samsung EVO Plus 128GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 256GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 128GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 64GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 128GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 64GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 32GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
  Lexar 1066x 64GB UHS-I Speed Grade 3 microSDHC


Battery

• Battery Type

• 2S LiPo

• Capacity

• 1300mAh

• Energy

• 5Wh

• Voltage

• 7.7V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• Camera Unit + Front Touchscreen Module: 160 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

• Charging Time

• Camera Unit + Front Touchscreen Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter

Power module

General

• Dimensions

• 39×41.6×21.4mm

• Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

• Weight

• 56.6g

• Supported SD Cards

• microSD (Max. 256GB)

• Recommended microSD Cards

• Recommended models:
  Samsung EVO 128GB UHS-I Speed Grade 3 microSDHC
  Samsung EVO Plus 128GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 256GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 128GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 64GB V30 A2 UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 128GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 64GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme Pro 32GB UHS-I Speed ​​Grade 3 microSDXC
  SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
  Lexar 1066x 64GB UHS-I Speed Grade 3 microSDHC


Battery

• Battery Type

• 2S LiPo

• Capacity

• 1300mAh

• Energy

• 5Wh

• Voltage

• 7.7V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• Camera Unit + Power Module: 180 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

• Charging Time

• Camera Unit + Power Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter

• 1x DJI Action 2 Action Camera
• 1x Rechargeable battery
• 1x Charging Cable
