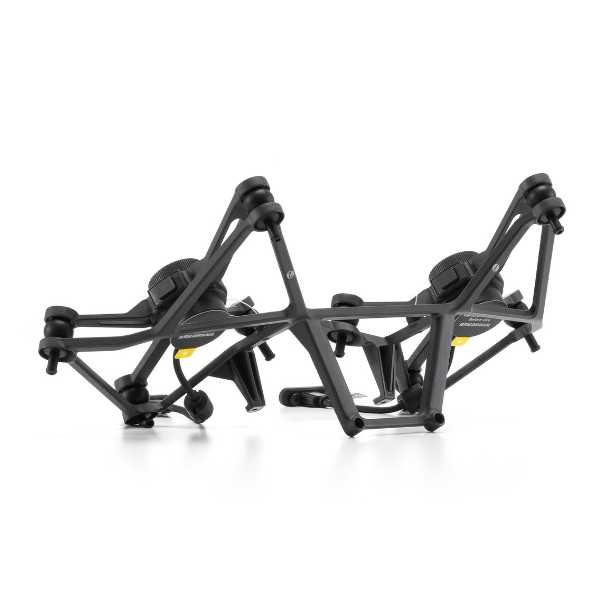

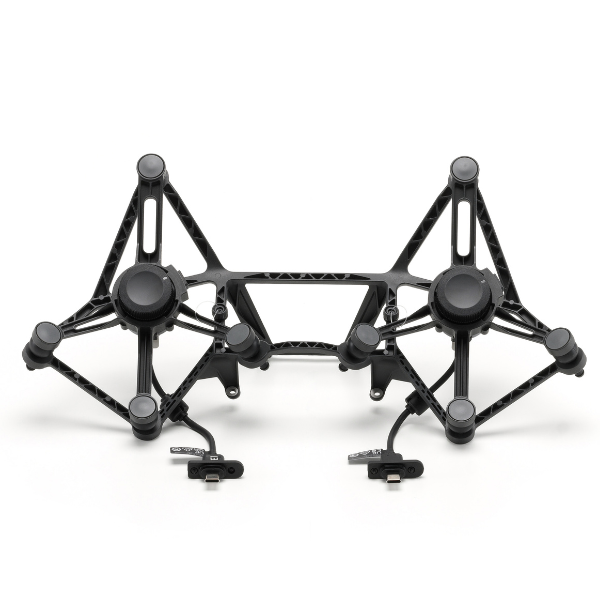

DJI MATRICE 400 - Dual Gimbal Connector
Allows mounting two stabilized gimbals under DJI Matrice 300, 350, or 400 drones, facilitating the simultaneous use of visual, thermal, or LiDAR sensors.
The DJI Dual Gimbal Connector is an accessory designed exclusively for the Matrice 400 drone. It allows mounting two stabilized gimbals underneath the device, which opens the door to powerful multi-sensor configurations: visual camera + thermal camera, or LiDAR + RGB, for example.
Designed for simple and quick integration, this connector features robust mounts, vibration absorption systems to protect payloads, and offers an IP44 protection rating when used with compatible gimbals. It is ideal for advanced mapping, industrial inspection, public safety, or rescue operations.
Feature | Detail |
Compatibility | DJI Matrice 400 only |
Number of supported gimbals | 2 stabilized gimbals |
Maximum payload | Up to 950 g per gimbal (depending on configuration) |
Protection rating | IP44 (with compatible gimbals) |
Anti-vibration system | Yes – 8 absorbers included |
Assembly | Plug-and-play under the drone structure |
Included accessories | Repair kit, screws |
Applications | Inspection, mapping, security, SAR missions |
- 1 × Double gondola connector for Matrice 400
- 8 × Anti-vibration absorbers
- 1 × Repair kit
- Fixing screws
