DJI MATRICE 400 - DJI E-Port V2 Development Kit
The DJI E-Port V2 Development kit allows you to easily connect, test, and integrate custom payloads on the Matrice 400 drone via the E-Port V2 interface.
The DJI E‑Port V2 Development Kit is an essential tool for developers, integrators, and engineers who want to fully leverage the capabilities of the Matrice 400 drone. This kit facilitates rapid prototyping, third-party device connection, and smart sensor integration via the DJI PSDK (Payload SDK) system.
Thanks to the E‑Port V2, users can directly utilize multiple types of signals and power without soldering or permanent modification:
-
USB 3.0, UART, CAN, PWM,
-
Stabilized power outputs (5 V, 12 V, VCC via XT30)
-
Direct connection to SkyPort V3 or X-Port modules via included adapters
Compact, modular, and robust, this kit simplifies testing, field demonstrations, and R&D projects on the Matrice 400.
Feature | Detail |
Compatibility | DJI Matrice 400 (via E‑Port V2) |
Available interfaces | USB 3.0, UART/PPS, CAN, PWM |
Power outputs | VCC (13.8–24 V), 12 V (4 A), 5 V (4 A) – XT30 connectors |
Sensor integration | SkyPort V3, X-Port, and PSDK payloads |
Application | Prototyping, on-site testing, PSDK development |
Estimated dimensions | ~89 × 60 × 13 mm |
Operating temperature | Compliant with DJI standards (from –20 °C to 50 °C via Matrice 400) |

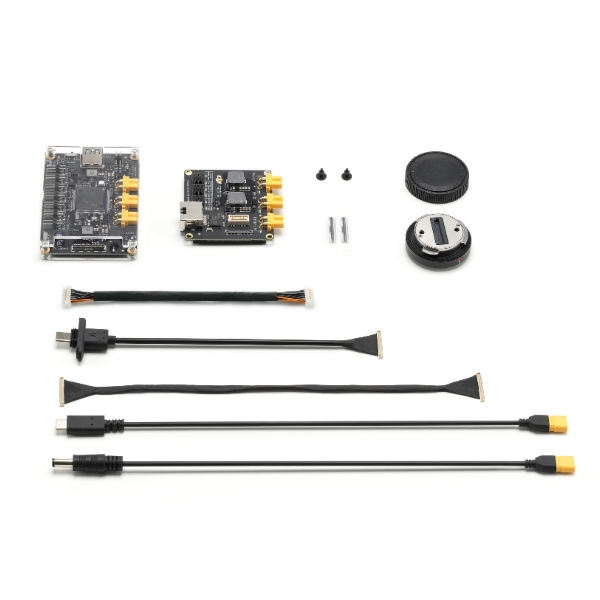

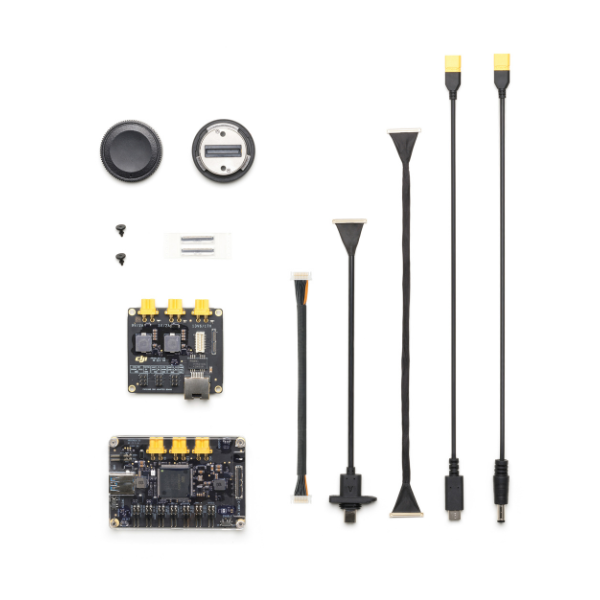

- 1 × DJI E‑Port V2 adapter board
- 1 × E‑Port V2 coaxial cable (150 mm)
- 1 × XT30 → USB-C cable (300 mm)
- 1 × XT30 → DC5.5 cable (300 mm)
- 1 × SkyPort V3 coaxial cable + connectors
- 1 × SkyPort V3 adapter
- 1 × X-Port adapter board + associated cable
