DJI Matrice 350 RTK - DJI E-PORT DEV KIT

The development kit can convert the aircraft's E port into multiple standard hardware ports such as XT30 power output ports, USB 2.0 port and UART/PPS signal port, making it easy for developers to connect hardware equipment and carry out SDK development and debugging.

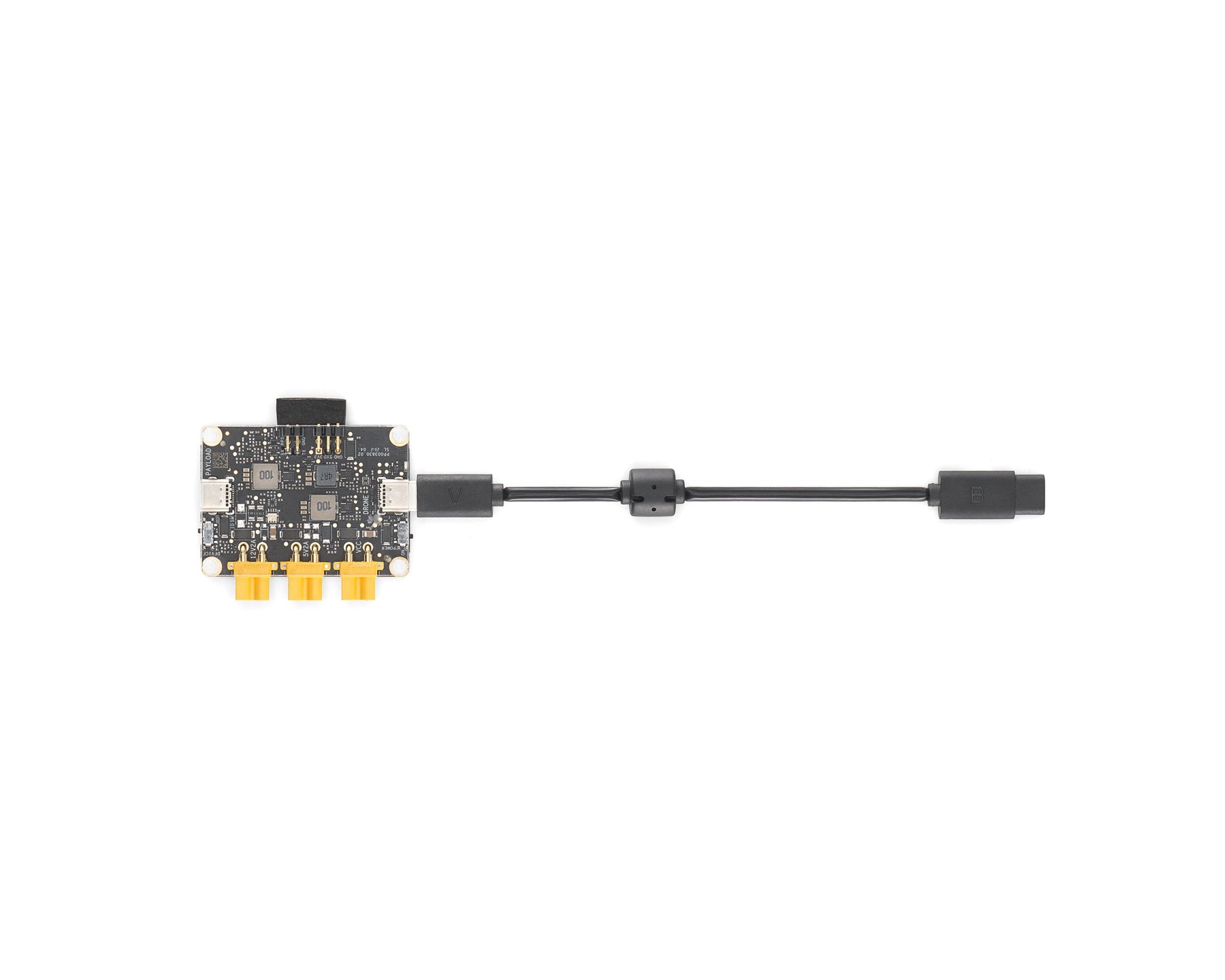

Adapter board dimensions: 55 × 40 × 9 mm (L × W × H)

XT30 VCC output power:

DJI Mavic 3E/3T: 12-17.6V/4A

Matrice 30 Series: 19.2-26.1 V/4 A

Matrix 300 RTK: 24 V/4 A

Matrix 350 RTK: 24 V/4 A

XT30 12V Output Power: 12V/2A

XT30 5V Output Power: 5V/2A

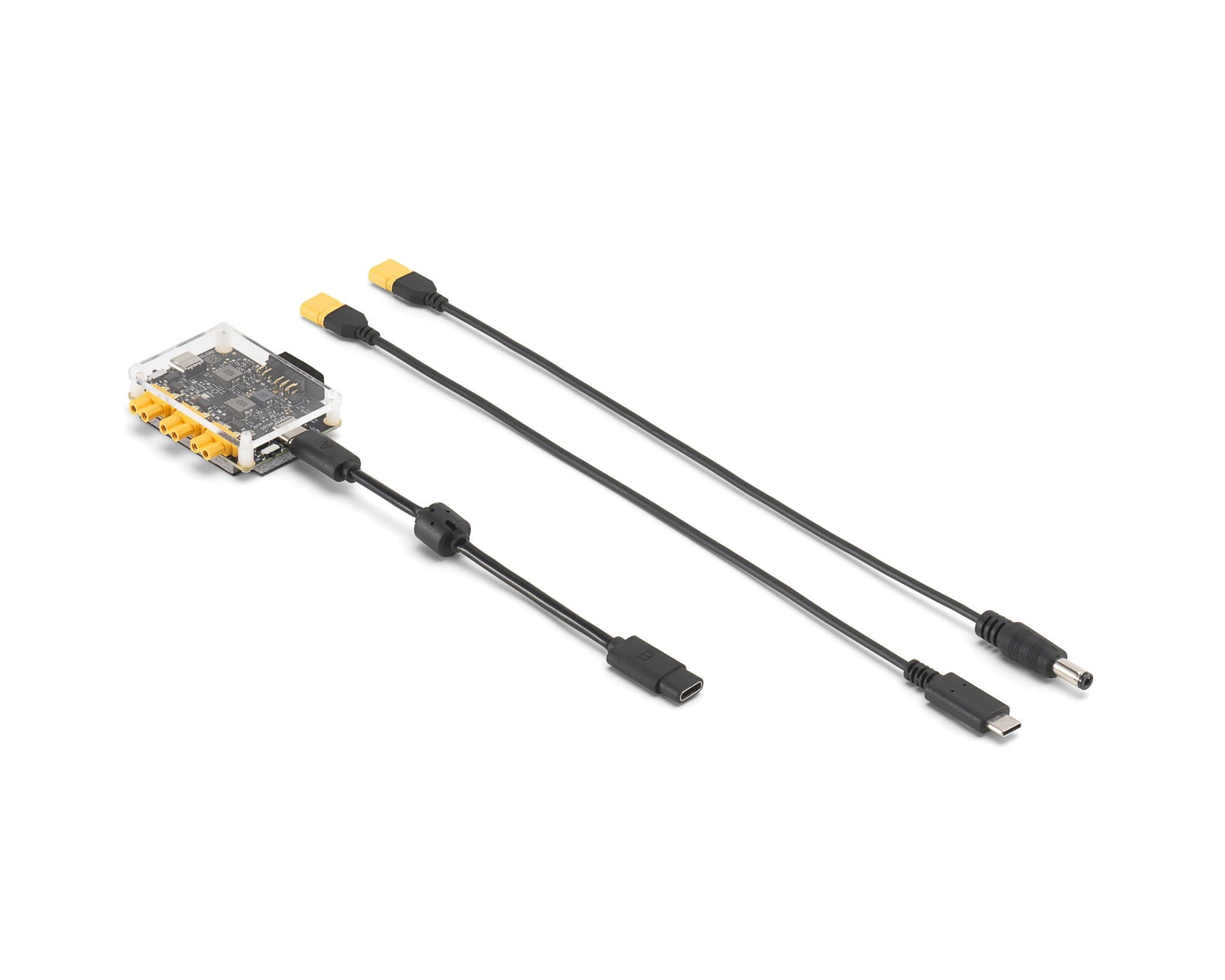

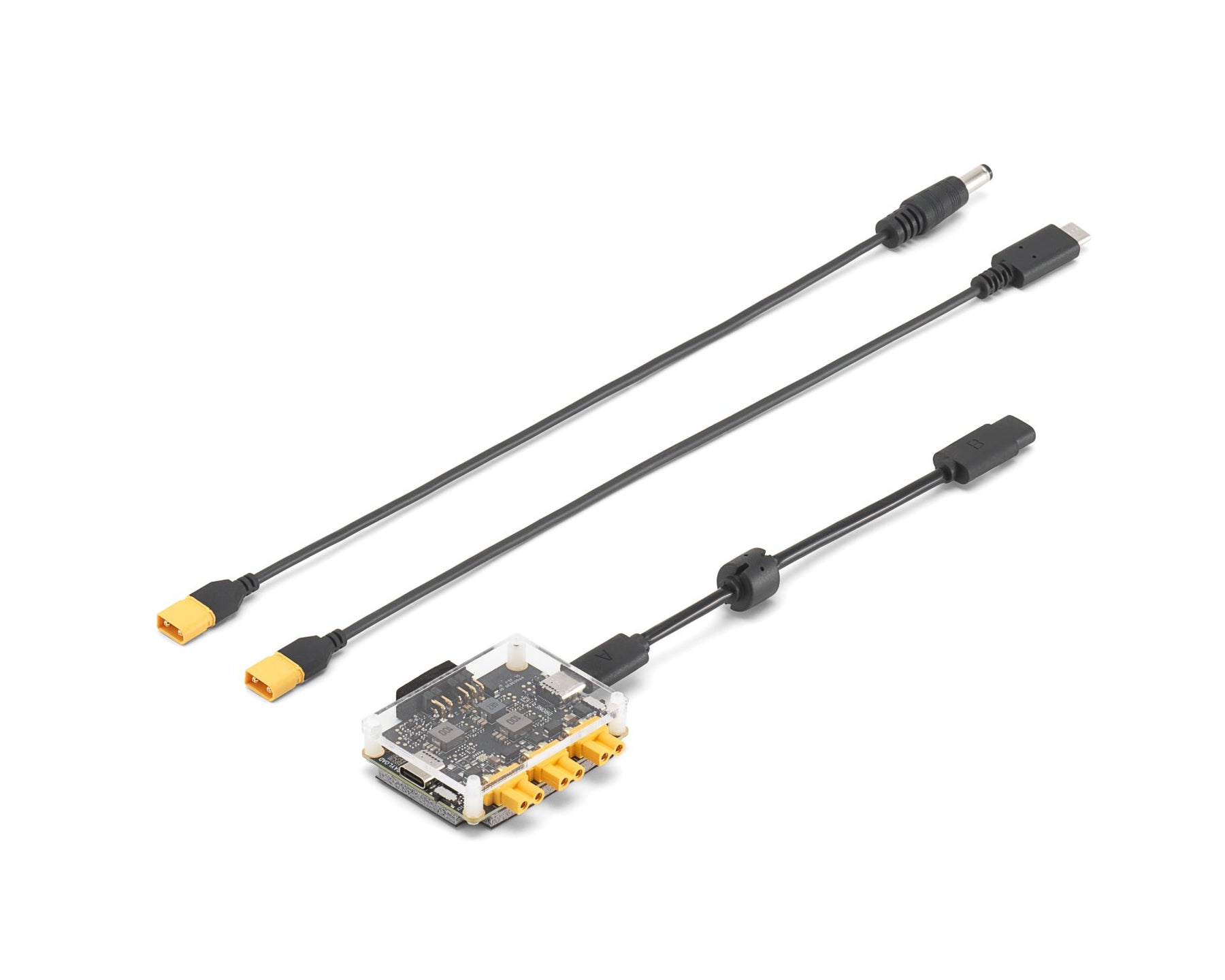

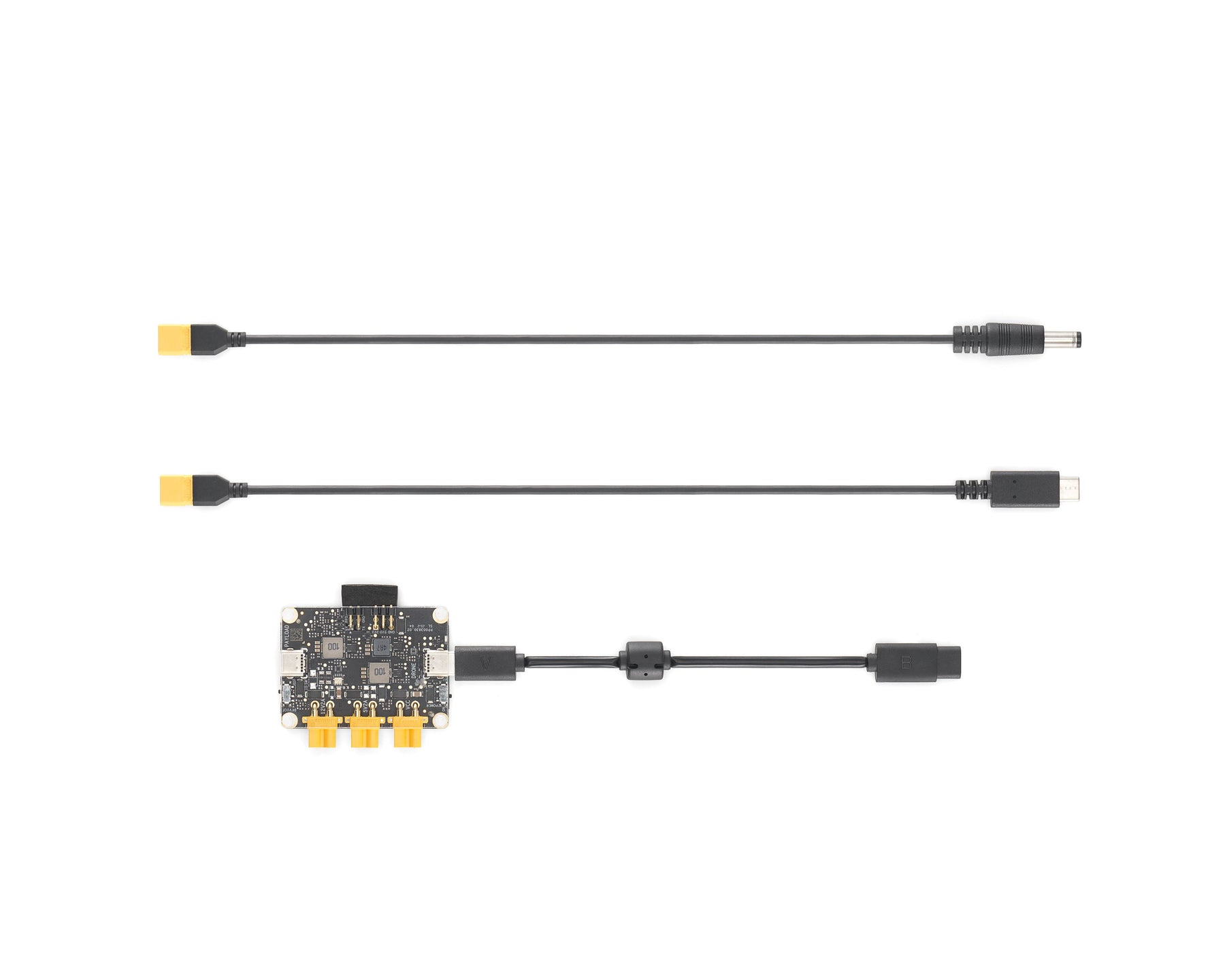

E-Port Adapter Board × 1

Pin Header Protector × 1

E-Port Coaxial Cable (150mm) × 1

XT30 to USB-C Power Cable (300mm) × 1

XT30 to DC5.5 Power Cable (300mm) × 1

Compatibilité :

Matrice 350 RTK

Matrice 300 RTK

Matrice 30/30T

DJI Mavic 3E/3T
