AURELIA - X6 MAX

Give wings to your ideas with the Aurelia X6 MAX

The Aurelia X6 MAX is a professional and industrial drone designed to carry up to 6 kg (13 lb) of payload. With minimal required setup, it is ready to fly right out of the box.

Key features

• Pixhawk flight controller: Open-source, with endless customization possibilities, equipped with ArduPilot or PX4.
• Components made in the USA: The Cube Blue flight controller and electronic components are manufactured in California.
• Integrated LCD status panel and toolbox: Quickly check flight modes, battery levels, and more. The toolbox allows for repairs and propeller changes in the field.
• 6 motors for increased reliability: Fly with peace of mind, even in the event of a motor failure.
• Lifetime product support: Enjoy ongoing support at no additional cost.

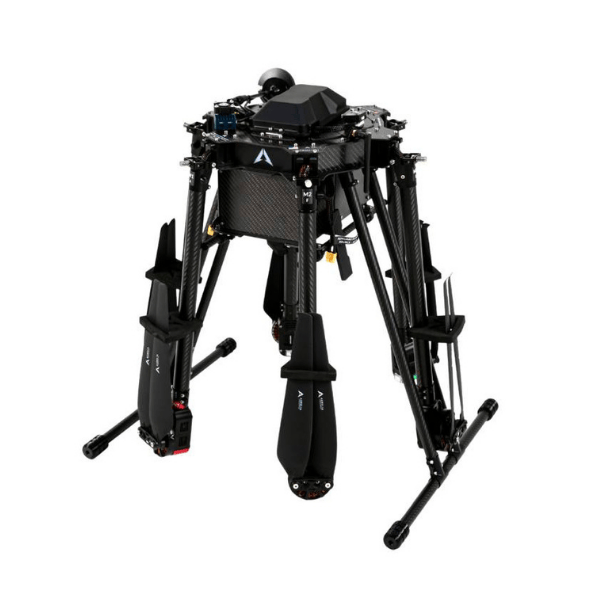

• Foldable for easy transport: Folds in less than 30 seconds for quick disassembly and transport.
• Mission planning software: Use QGroundControl or Mission Planner for route programming, geofencing, and much more.

Reliability, performance, and versatility

The Aurelia X6 MAX is designed to deliver exceptional precision, reliability, and performance, making it a trusted platform for research institutions, businesses, and government agencies.

Technical specifications of the Aurelia X6 MAX

Maximum flight autonomy:

• 70 minutes

Drone weight:

• Empty weight: 4900 g | 10.80 lb
• Weight with batteries: 9566 g | 21.09 lb

Payload capacity:

• 6000 g | 13.23 lb

Maximum takeoff weight (MTOW):

• 15566 g | 34.32 lb

Performance and range

• Maximum flight speed: 35 mph | 56 km/h
• Maximum wind resistance: 20 mph | 32 km/h
• Maximum operational ceiling: 3000 m (ASML)
• Operational range:
  • Standard: 5 km | 3 mi (RFD900UX)
  • With HereLink: 5 km | 3 mi

Safety and navigation

• Data encryption:
  • AES-128: HereLink Black, HereLink Blue, RFD900X
  • AES-256: UXV Navigator Tab 3
• GPS: uBlox ZED F9P
• GPS constellations: GPS, GLONASS, Galileo, BeiDou, L2 Band (simultaneous)
• GPS accuracy: +/- 2.5 cm
• LiDAR rangefinder:
  • Range: 0 - 40 m
  • Accuracy: +/- 2.5 cm
• Compass: RM3100
• Redundancy: 2 accelerometers, 2 gyroscopes, 1 magnetometer
• ADS-B: uAvionix 1090, range of 20 km (12 mi)

Power supply

• Battery type: Lithium-Ion (Li-Ion)
• Battery capacity: 2 x 27,000 mAh
• Battery voltage: 22.2 V

Classification and compliance

• Europe/UK drone classification: Class C3
• Export control classification number (ECCN): EAR99

Contents of the Aurelia X6 MAX box

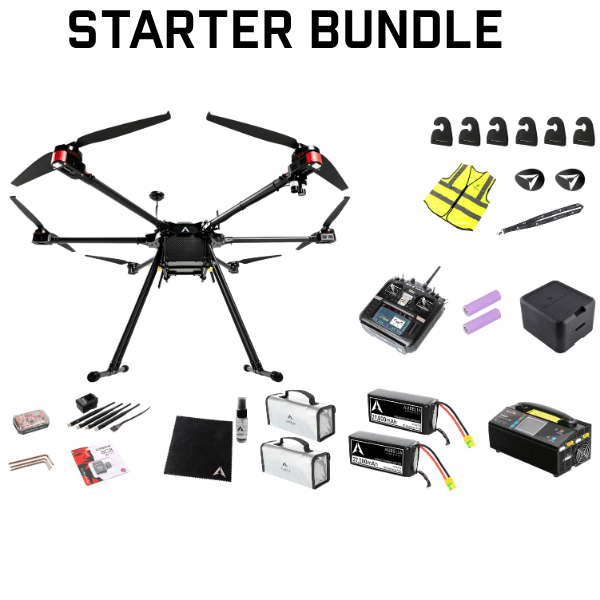

★ Starter Bundle

• 1x Aurelia X6 MAX UAV: Configured and ready to fly
• 2x Aurelia Li-Po batteries: 27,000 mAh, 6S, 22.2 V
• 2x Fast LiPo chargers: Balanced chargers for LiPo batteries
• 1x Radiomaster TX16S controller
• 2x 18650 Li-Ion batteries for controller (Radiomaster option)
• 1x Case for Radiomaster TX16S controller
• 1x Aurelia Aerospace safety vest
• 1x Aurelia Aerospace lanyard
• 2x Aurelia Aerospace stickers
• 1x Mini toolbox
• 6x Propeller arm mounts
• 1x Ground telemetry radio: 915 MHz / 433 MHz (EU)
• 1x 8 GB Micro SD Card
• 1x Cleaning cloth + chassis cleaner

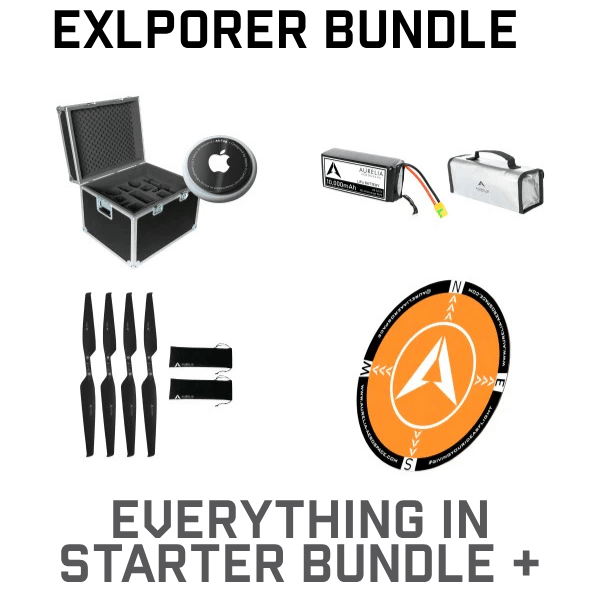

★ Explorer Bundle

Includes all Starter items, plus:

• 1× Hard carrying case + AirTag

• 1× Additional battery pack (1× 10,000 mAh Li-Po or LE option)

• 1× Additional LiPo carrying bag

• 1× Spare propeller set (4 pcs)

• 2× Additional propeller guards

• 1× Aurelia Takeoff Pad

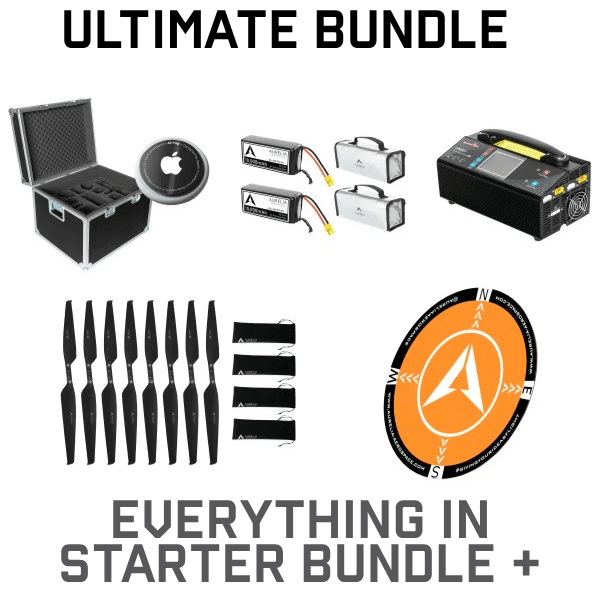

★ Ultimate Bundle

Includes all Starter items, plus:

• 1× Hard carrying case + AirTag

• 2× Additional battery packs (2× 10,000 mAh Li-Po or LE option)

• 2× LiPo Carrying Bags

• 2× Spare Propeller Sets (8 pcs total)

• 4× Propeller Protection Covers

• 1× Aurelia Takeoff Pad

• 1× Fast Charger
