AURELIA - X4 Standard LE

Give wings to your ideas with the Aurelia X4 Standard

The Aurelia X4 Standard is a versatile drone, designed for professionals and industrial users. Equipped with a large payload bay, it can carry up to 1.5 kg (3.3 lb), while offering a flight time of up to 40 minutes with the Long-Endurance battery option.

Main features

• Flight autonomy:
  • 25 minutes (standard battery)
  • 40 minutes (Long-Endurance battery)
• Payload capacity: Up to 1.5 kg | 3.3 lb
• Flight range: Up to 5 km | 3 mi
• Integrated toolbox for quick field repairs.

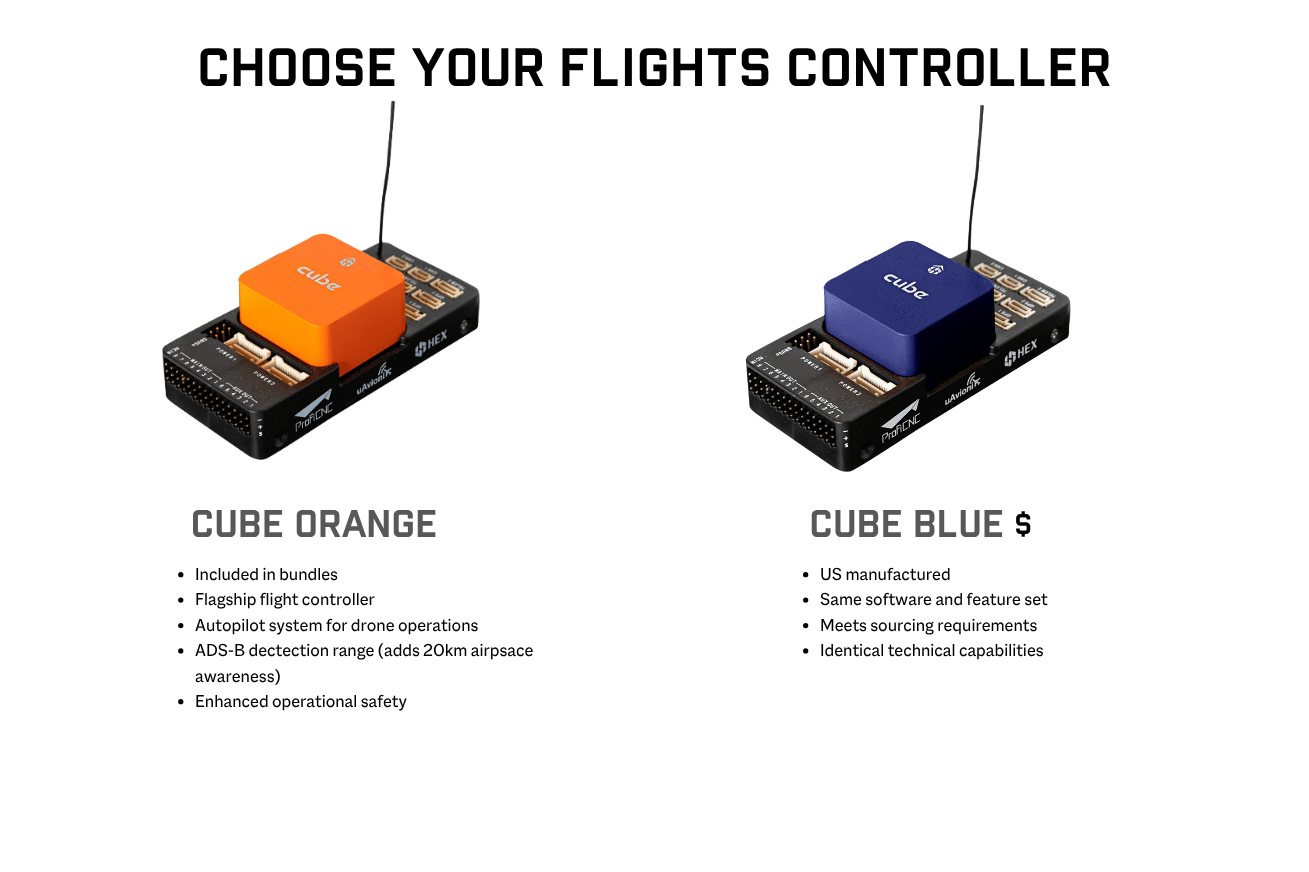

• Open-source Pixhawk flight controller with ArduPilot or PX4.
• Components made in the USA ensuring performance and reliability.
• Lifetime product support system, including introductory Zoom calls and ongoing support.
• Long-Endurance battery available to increase flight time.
• Foldable for easy transport, folds in less than 15 seconds.
• Free mission planning software compatible with QGroundControl and Mission Planner.

Versatility and customization

The Aurelia X4 Standard can be fully customized to your specific needs, whether for mapping, inspection, or surveillance missions. Its modular design and multiple flight modes ensure maximum flexibility for all your applications.

Your ready-to-fly flight solution

In less than 15 seconds, the drone folds for easy transport, and it is delivered ready to fly, with minimal setup required. Simply install your payload and take off!

Technical specifications of the Aurelia X4 Standard

Maximum flight autonomy:

• Standard battery: 25 minutes
• Long-Endurance (LE) battery: 40 minutes

Drone weight:

• Empty weight: 2450 g | 5.40 lb
• Weight with battery:
  • Standard battery: 3712 g | 8.18 lb
  • LE battery: 3924 g | 8.65 lb

Payload capacity:

• 1500 g | 3.3 lb

Maximum takeoff weight (MTOW):

• Standard battery: 5212 g | 11.49 lb
• LE battery: 5424 g | 11.96 lb

Performance and range

• Maximum flight speed: 35 mph | 56 km/h
• Maximum wind resistance: 20 mph | 32 km/h
• Maximum operational ceiling: 3000 m (ASML)
• Operational range:
  • Standard: 2.4 km | 1.5 mi (RFD900UX)
  • With HereLink: 5 km | 3 mi

Safety and navigation

• Data encryption:
  • AES-128: HereLink Black, HereLink Blue, RFD900X
  • AES-256: UXV Navigator Tab 3
• GPS: uBlox M9N
• GPS constellations: GPS, GLONASS, Galileo, BeiDou, L2 Band
• GPS accuracy: +/- 4 cm
• LiDAR rangefinder:
  • Range: 0 - 12 m
  • Accuracy: +/- 4 cm
• Compass: RM3100
• Redundancy: 2 accelerometers, 2 gyroscopes, 1 magnetometer
• ADS-B: uAvionix 1090, range of 20 km (12 mi)

Power supply

• Battery type:
  • Standard battery: Lithium-Polymer (LiPo)
  • LE battery: Lithium-Ion (Li-Ion)
• Battery capacity:
  • Standard battery: 1 x 10,000 mAh
  • LE battery: 1 x 16,000 mAh
• Battery voltage: 22.2 V

Classification and compliance

• Drone classification Europe/UK: Class C3
• Export control classification (ECCN): EAR99

Contents of the Aurelia X4 Standard box

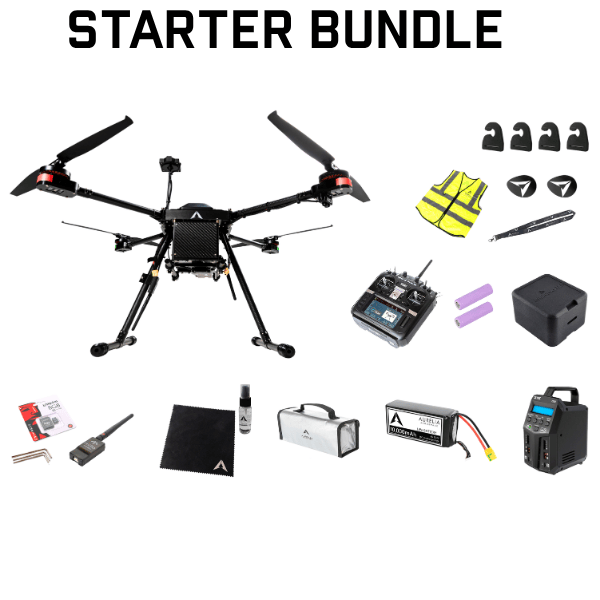

★ Starter Bundle

• 1× Aurelia X4 Standard LE UAV (configured and ready to fly)
• 1× Li-Po Battery 10,000 mAh 6S 22.2 V (or 1× Li-Ion 16 000 mAh 6S – LE option)
• 1× SkyRC T200 LiPo Balance Charger
• 1× LiPo Safety Bag with Handle
• 2× 18650 Li-Ion Batteries for Remote Control (Radiomaster option)

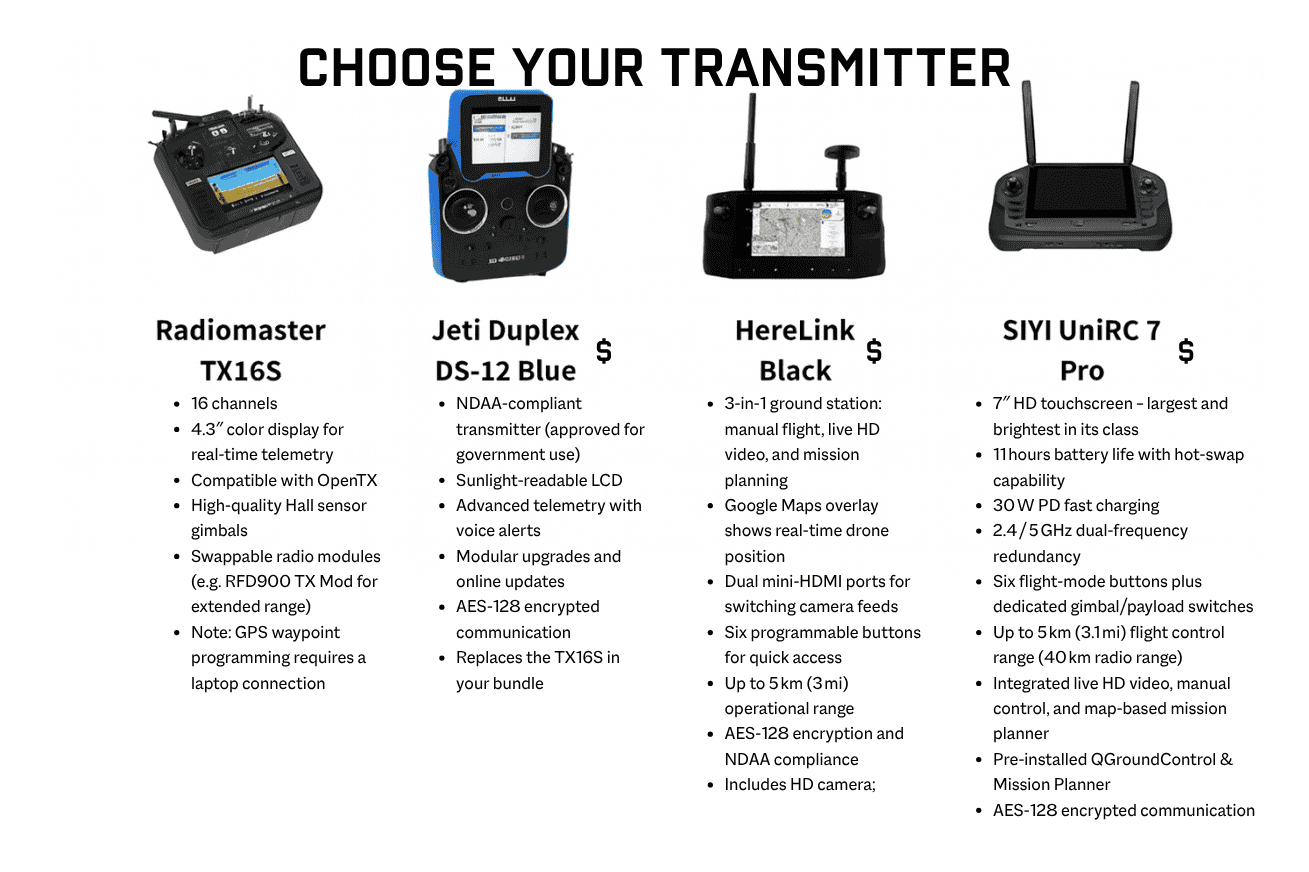

• 1× Radiomaster TX16S Remote Control (Radiomaster option)
• 1× Radiomaster TX16S Case (Radiomaster option)
• 1× Aurelia Aerospace Safety Vest
• 1× Aurelia Aerospace Lanyard
• 2× Aurelia Aerospace Stickers
• 1× Mini Tool Kit
• 4× Propeller Guards
• 1× Ground Telemetry Radio (915 MHz / 433 MHz EU)
• 1× 8 GB Micro SD Card
• 1× Cleaning Cloth + Frame Cleaner

★ Explorer Bundle

Contents of the Starter Bundle, plus :

• 1× Hard Travel Case + AirTag
• 1× Additional Battery Pack (1 pcs)
• 1× LiPo Carrying Bag
• 1× Spare Propeller Set (4 pcs)
• 2× Propeller Protection Covers
• 1× Aurelia Drone Landing Pad

★ Ultimate Bundle

Contents of the Starter Bundle, plus :

• 1× Hard Travel Case + AirTag
• 2× Additional Battery Packs (2 pcs)
• 2× LiPo Carrying Bags
• 2× Spare Propeller Sets (8 pcs total)
• 4× Propeller Protection Covers
• 1× Aurelia Takeoff Pad
• 1× Fast Charger
